THE MACHINE
NEVER TELLS A LIE

ALL AJCE HYDRAULIC BREAKERS ARE DESIGNED,
MANUFACTURED AND ASSEMBLED BY AJCE!

ABOUT AJCE KOREA

AJCE IS A KOREAN MANUFACTURER IN CONSTRUCTIOIN EQUIPMENTS INDUSTRY MAINLY FOCUSING ON HYDRAULIC BREAKERS.
SINCE 1990, THE REAL FACTORY HAS SUPPORTED DEALERS WITH QUALITY PRODUCTS AND SINCERE SERVICES.
100% IN-HOUSE MANUFACTURING AND USAGE OF PREMIUM MATERIALS HAVE FACILITATED THE DEVELOPMENT OF THE MOST EXTENSIVE AND LONG-TERM BUSINESS PARTNERSHIPS ALL OVER THE WORLD. ROBUST DESIGN, DURABLE PARTS AND WELL-EXPERIENCED ENGINEERS HAVE ENABLED US TO RESPOND SWIFTLY TO VARIOUS NEEDS AND WISHES OF CUSTOMERS.

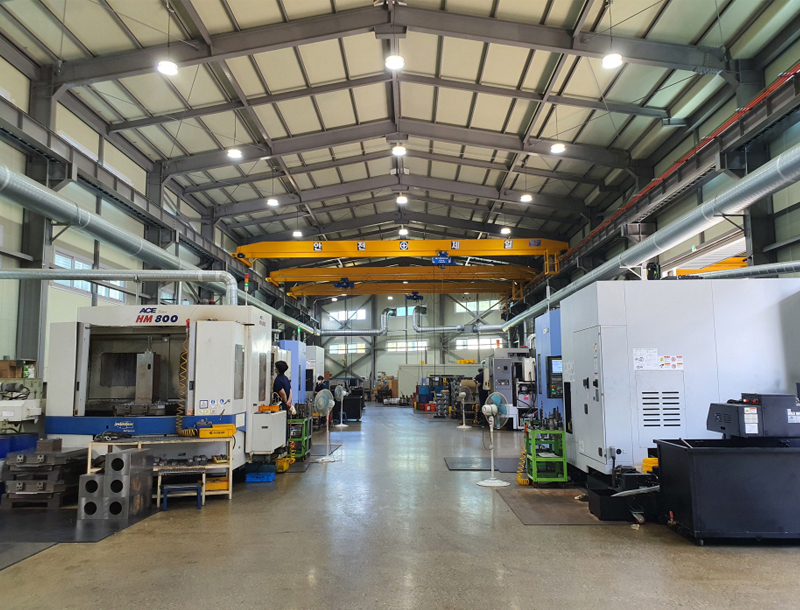

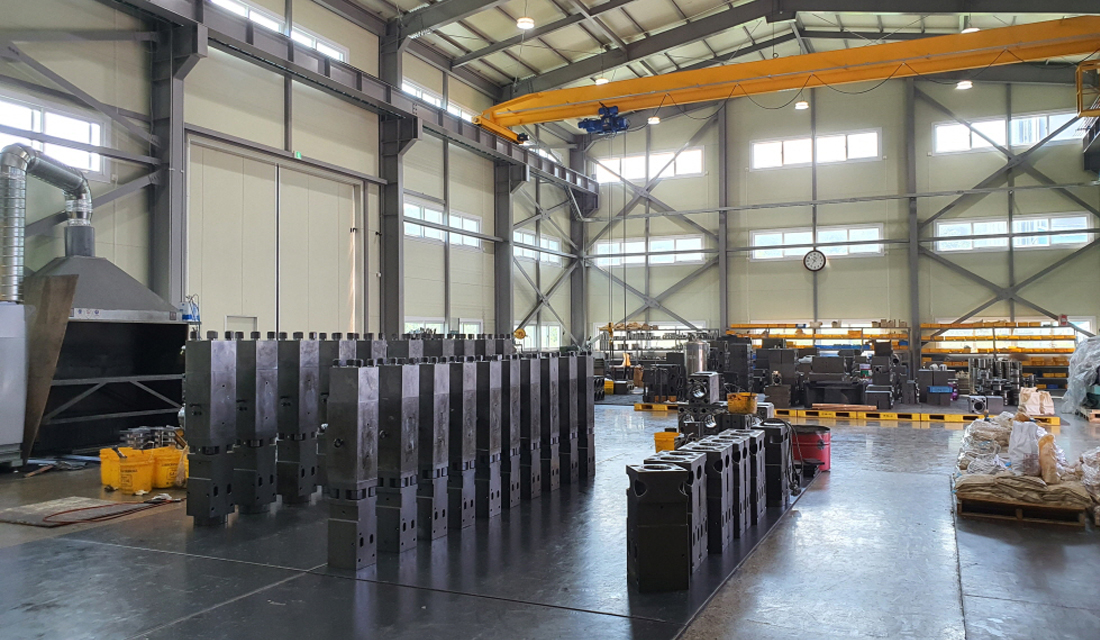

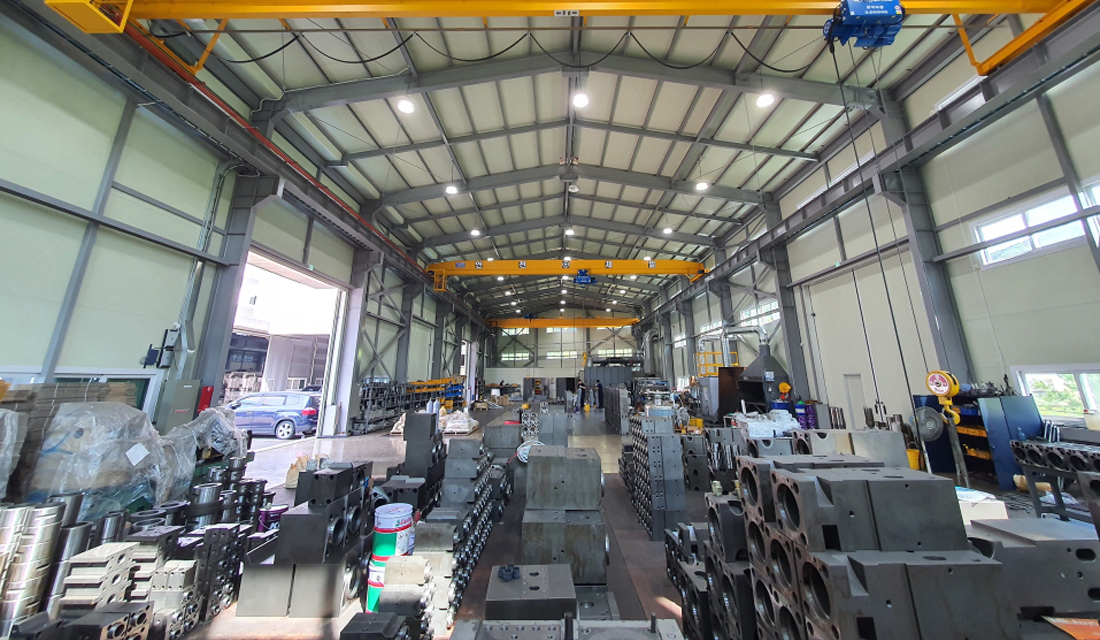

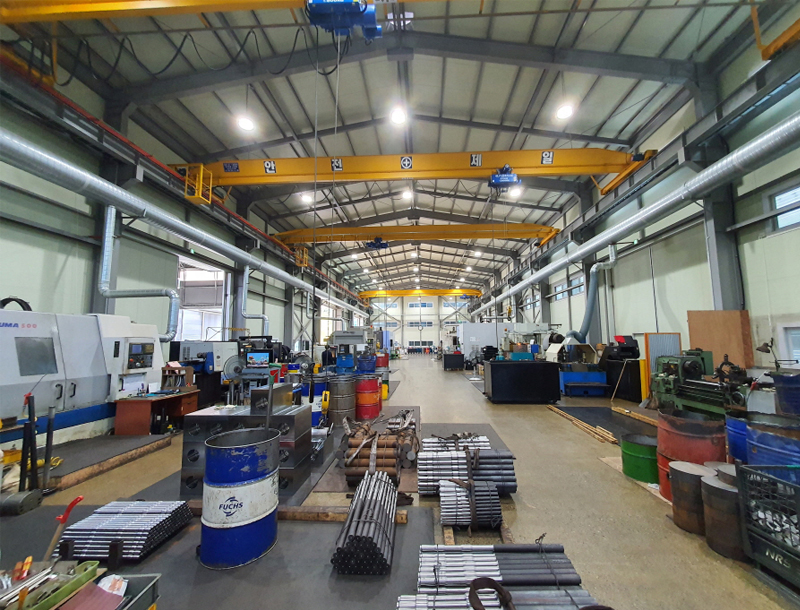

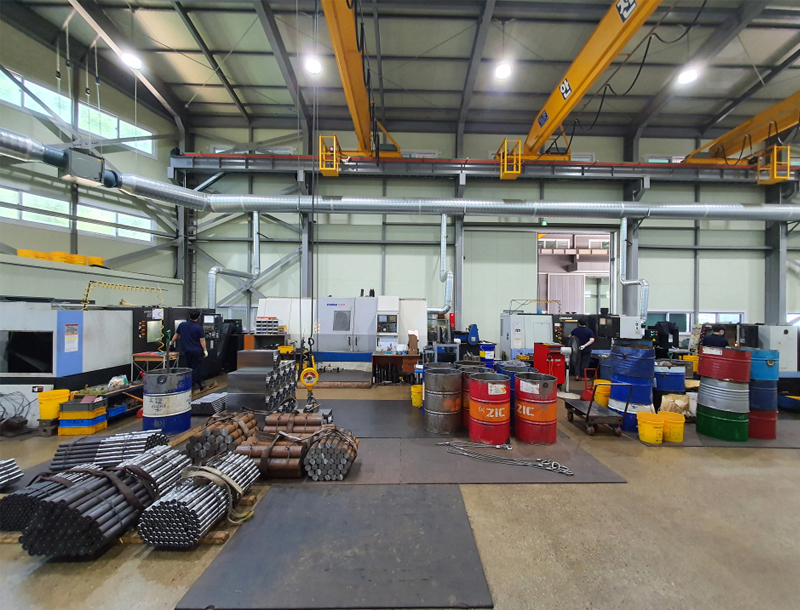

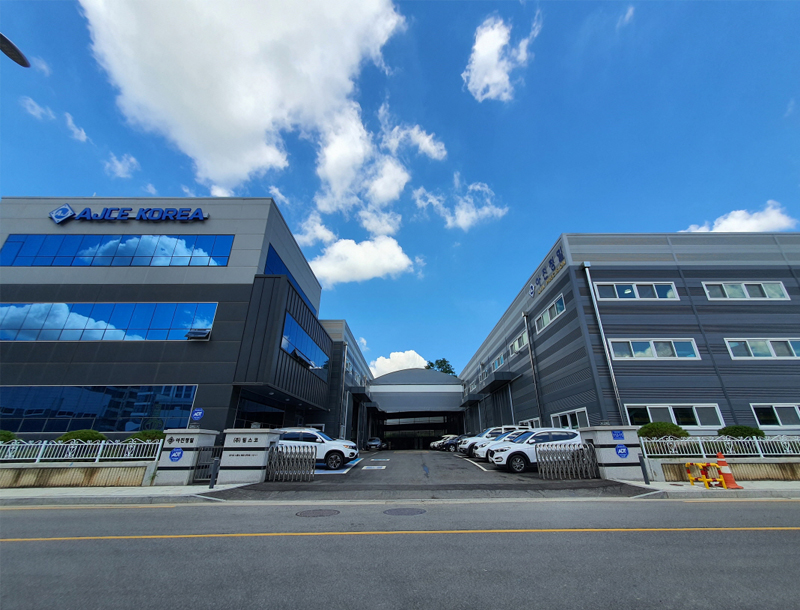

FACTORY

HYDRAULIC BREAKER - JACK HAMMER - ROCK BREAKER - EXCAVATOR ATTACHMENT - CONSTRUCTION EQUIPMENT - HYDRAULIC HAMMER

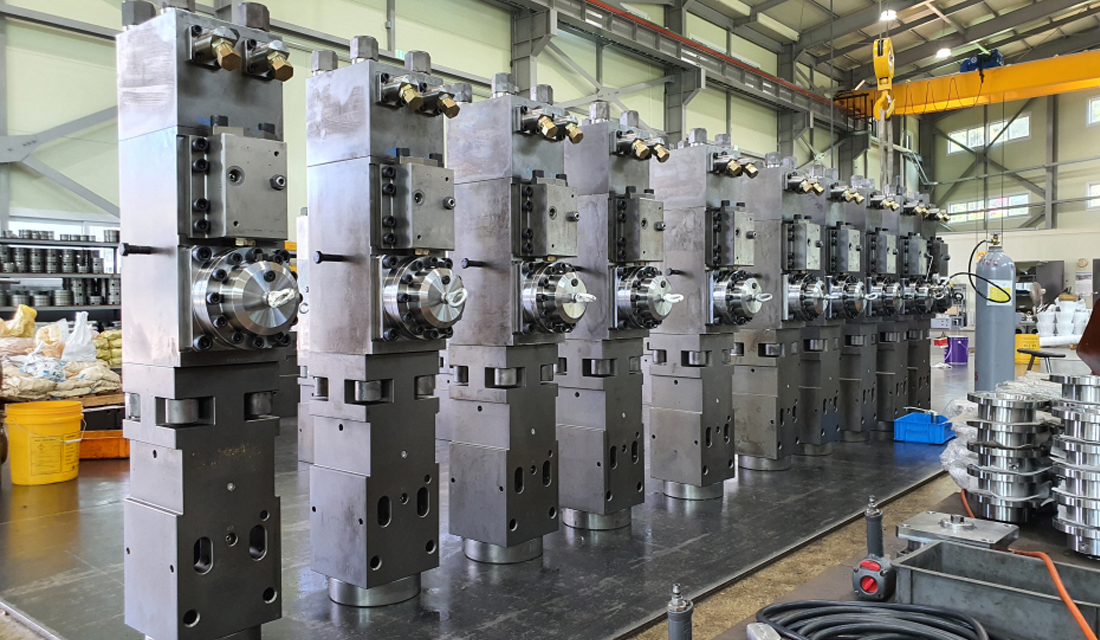

MANUFACTURING PLANT PRODUCES MOST OF PARTS SUCH AS
CYLINDER, PISTON, FRONT HEAD, VALVES, SEAL RETAINER, ACCUMULTOR,
THROUGH BOLT, SIDE BOLD, UPPER BUSH, LOWER BUSH, CHISEL PIN, STOP PIN AND ADJUSTERS ETC.

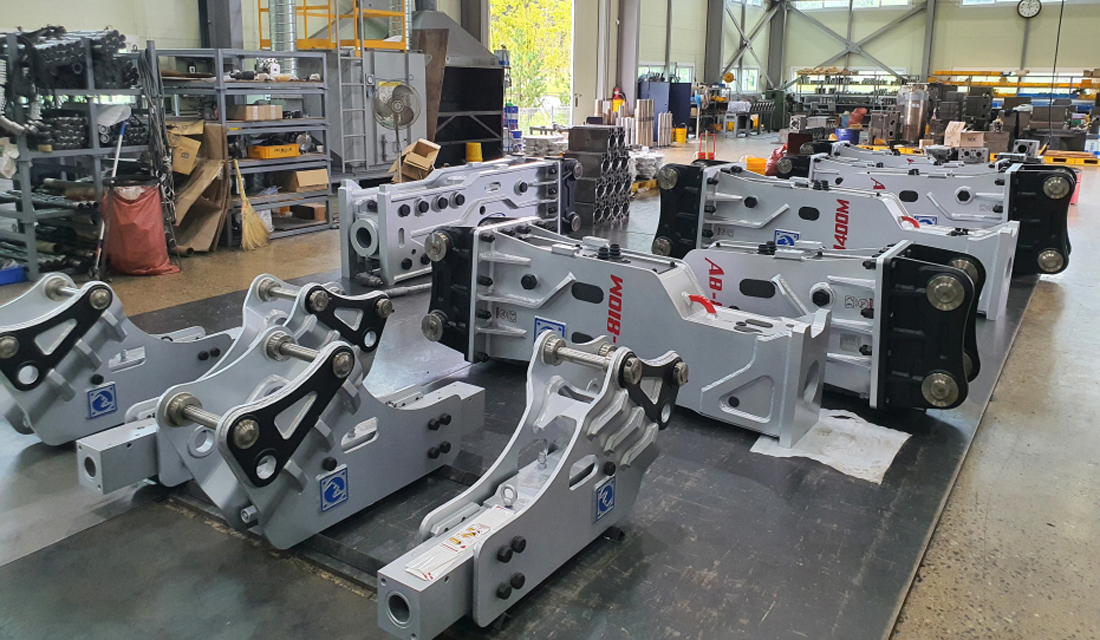

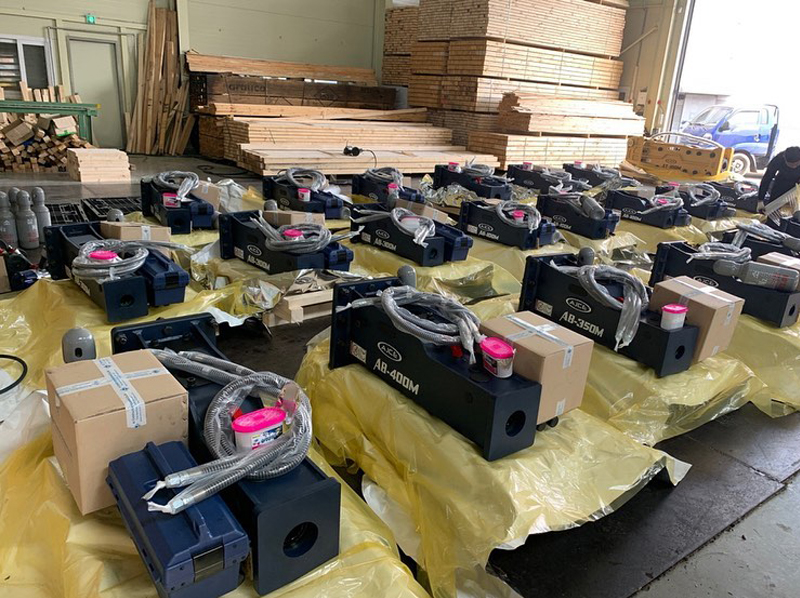

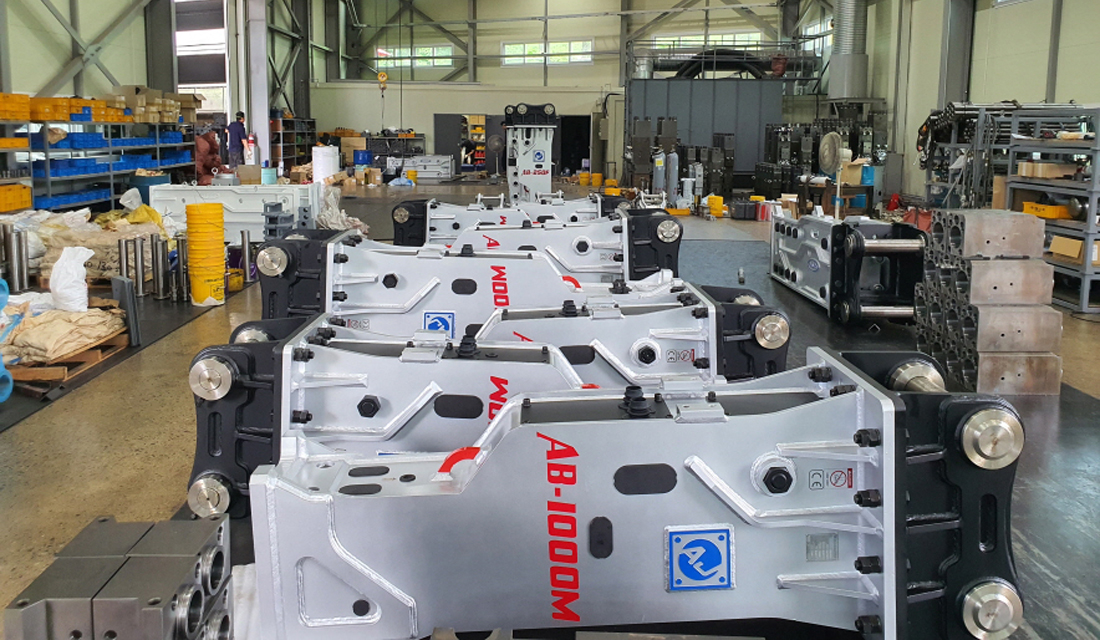

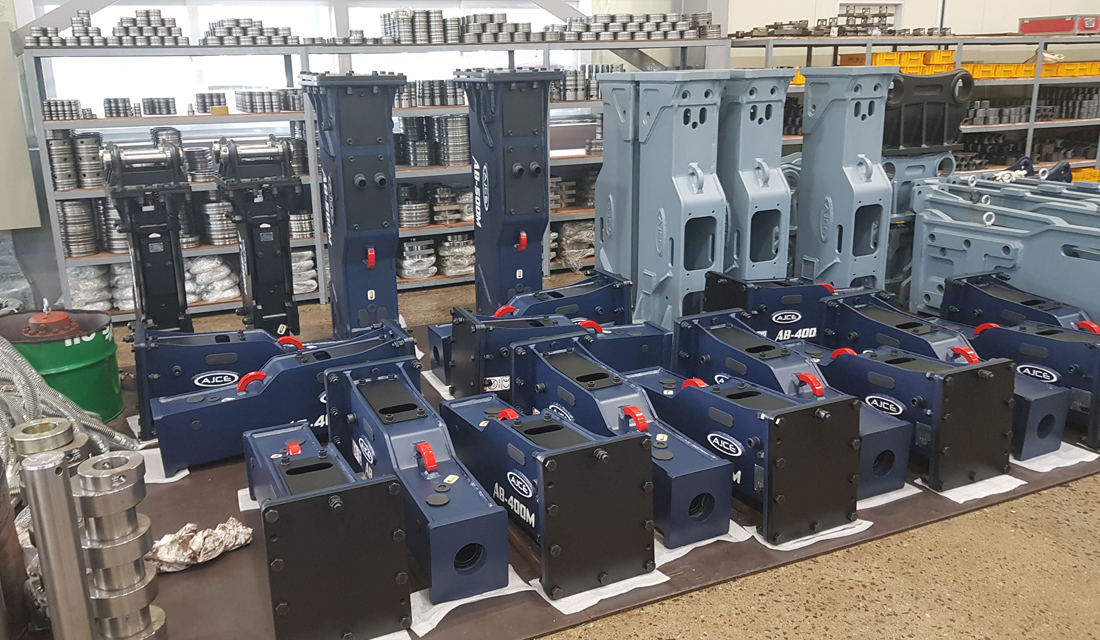

ASSEMBLY PALNT HAS A MANUFACTURING PROCESS INCLUDING GRIDING,
CLEANING, ASSEMBLING TESTING,PAINTING, AND KEEPS ALL THE PARTS ON STOCK.

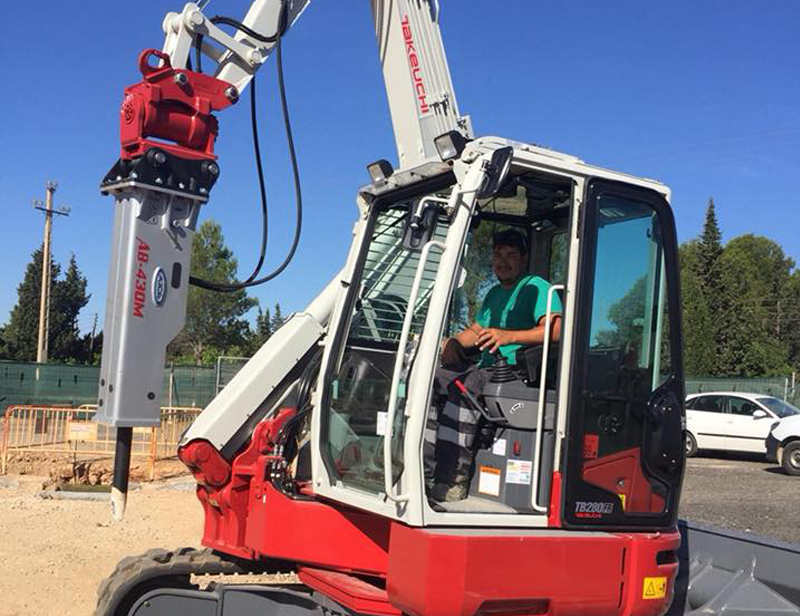

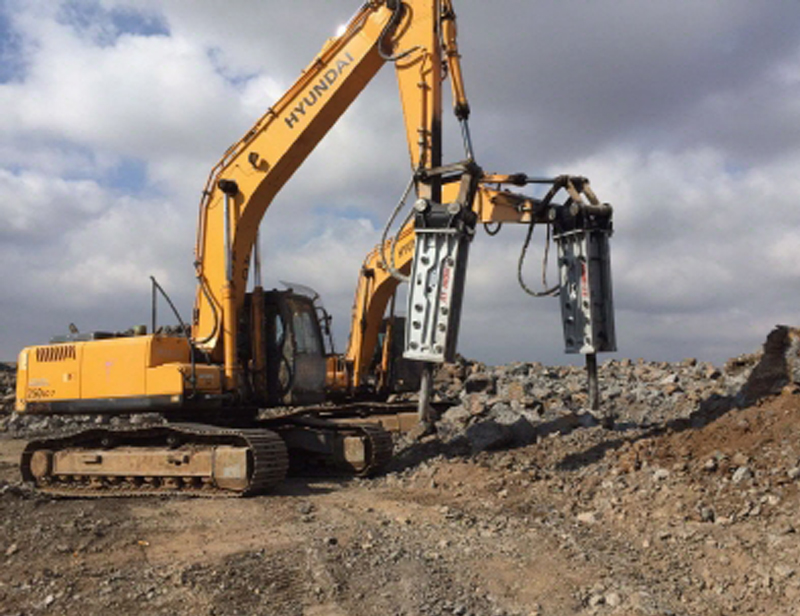

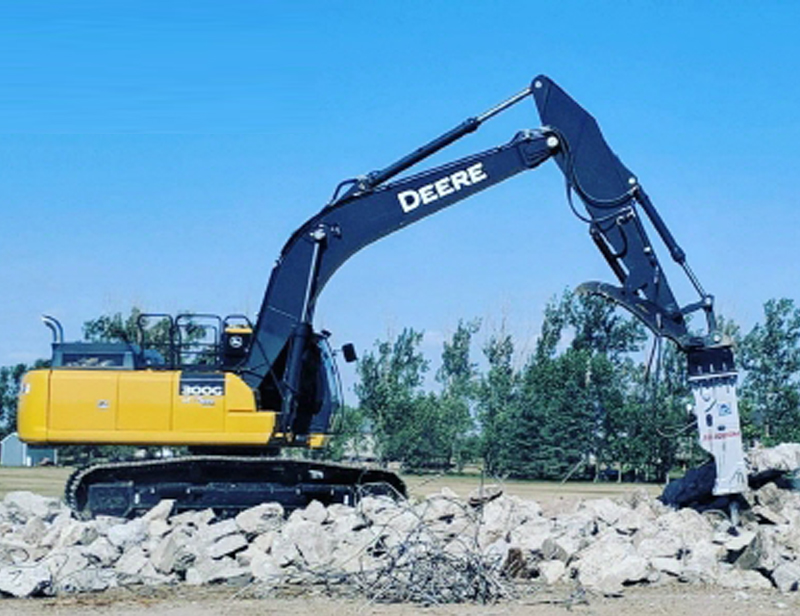

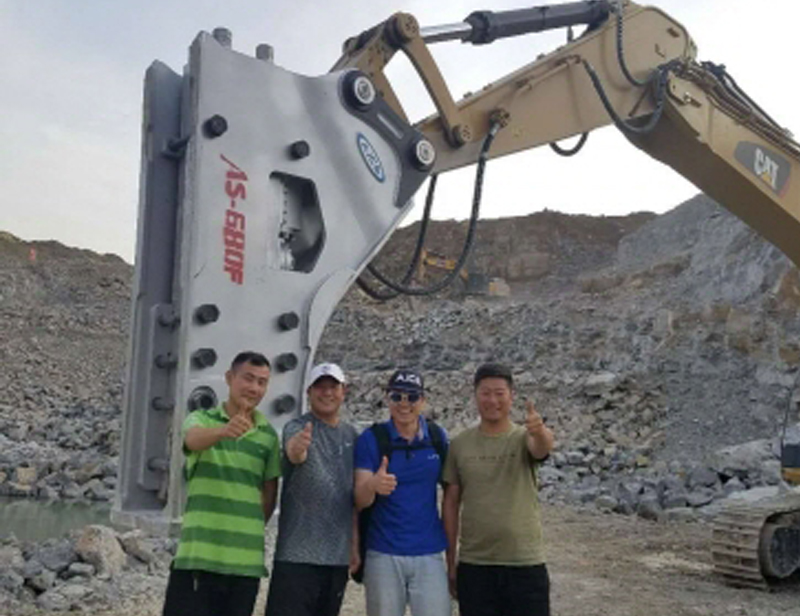

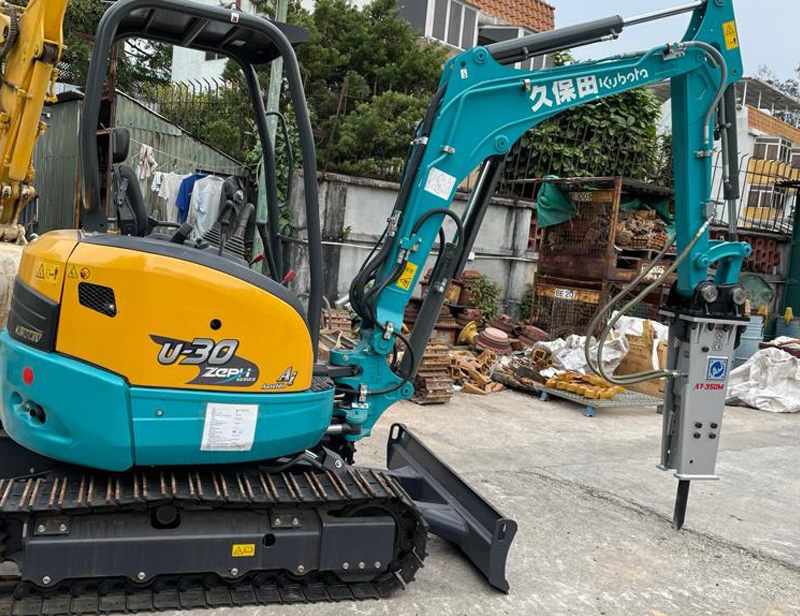

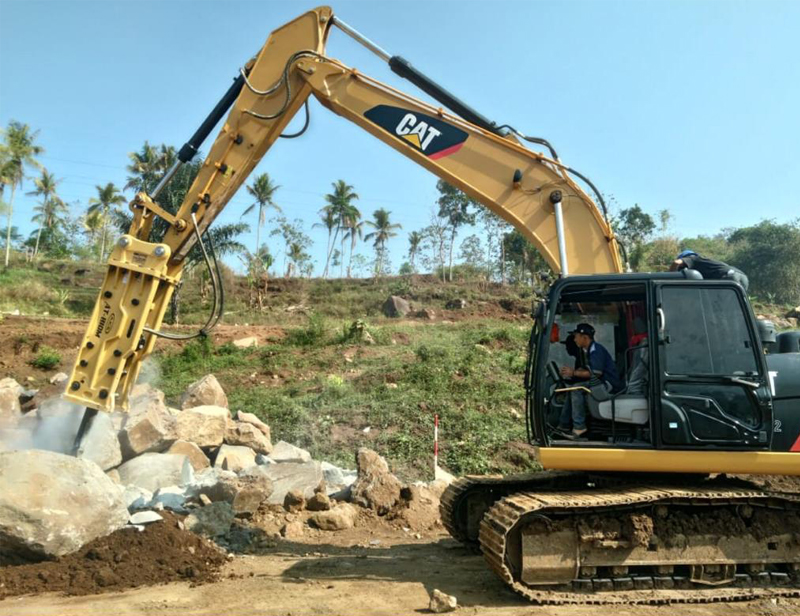

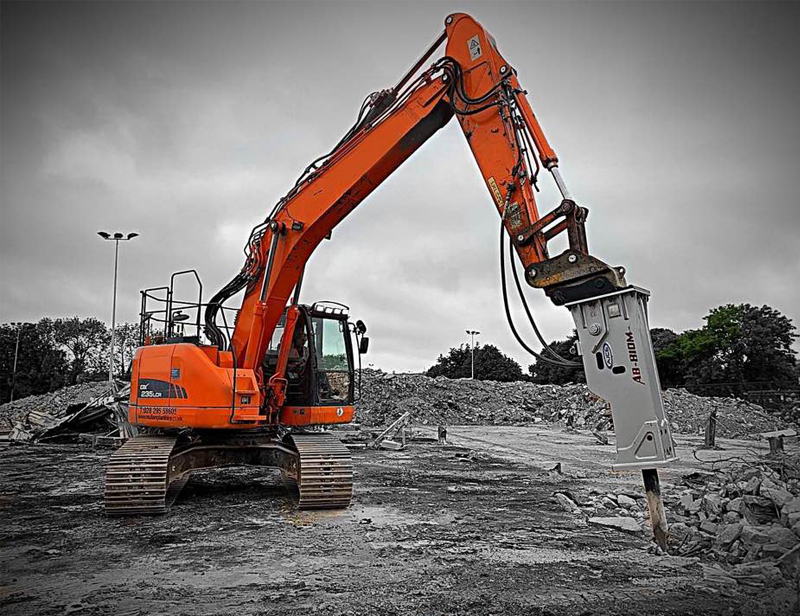

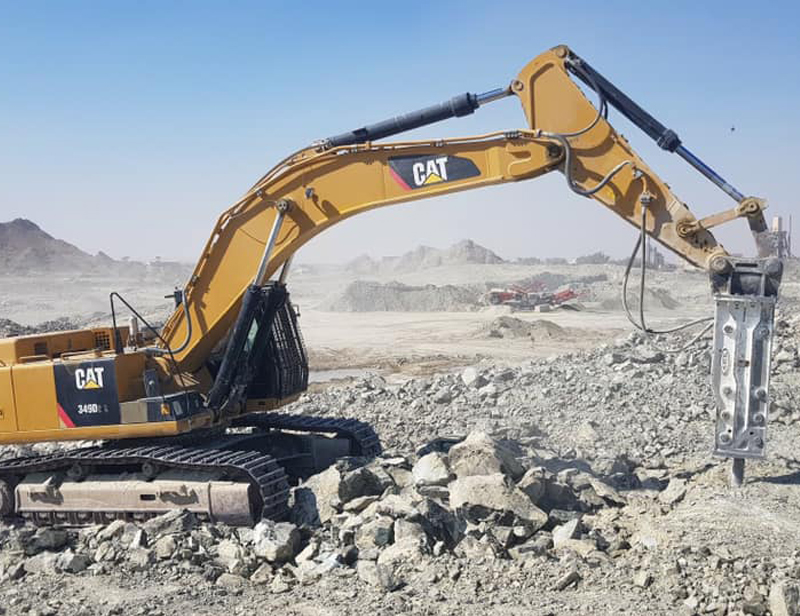

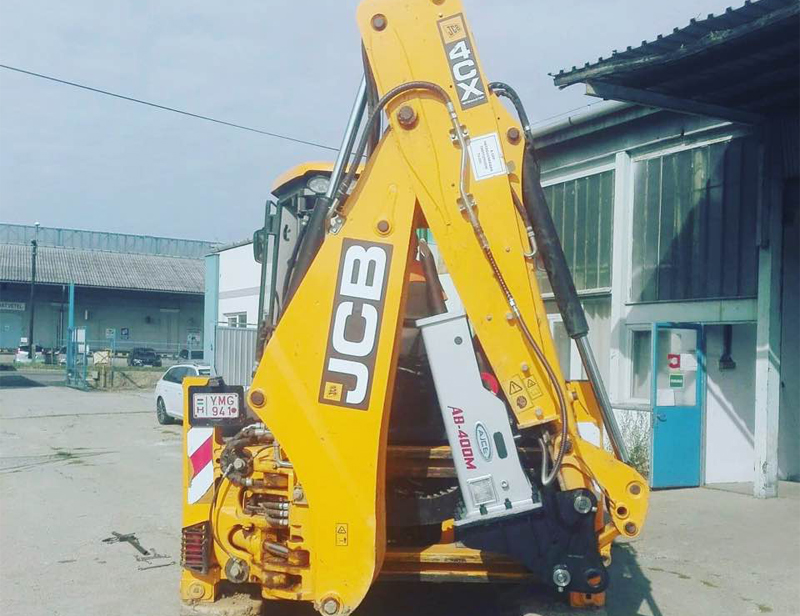

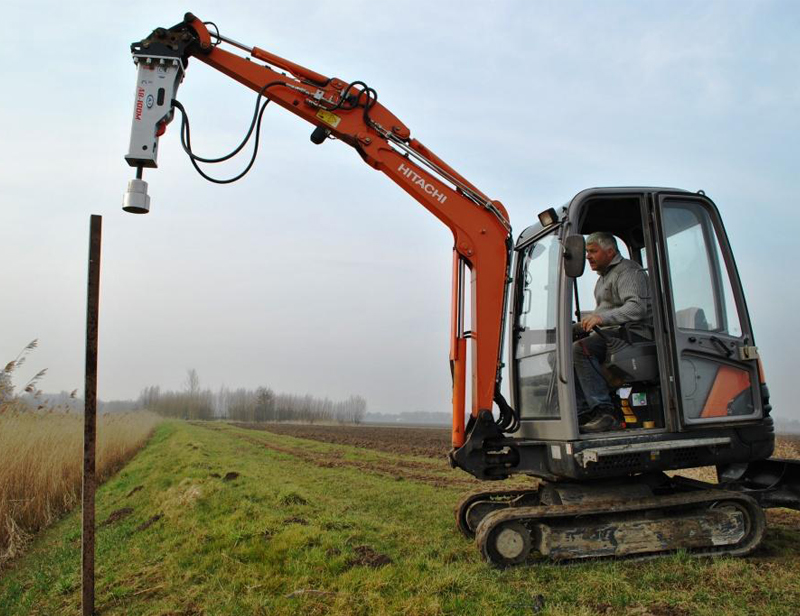

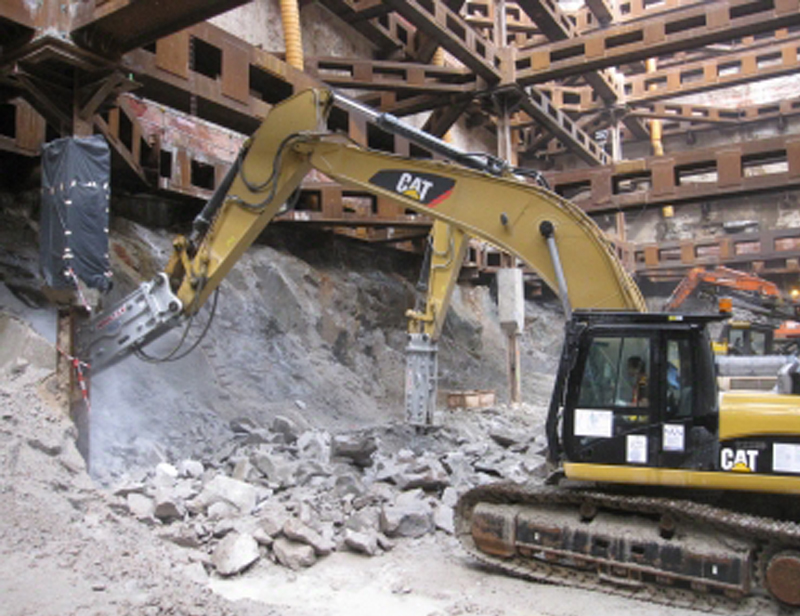

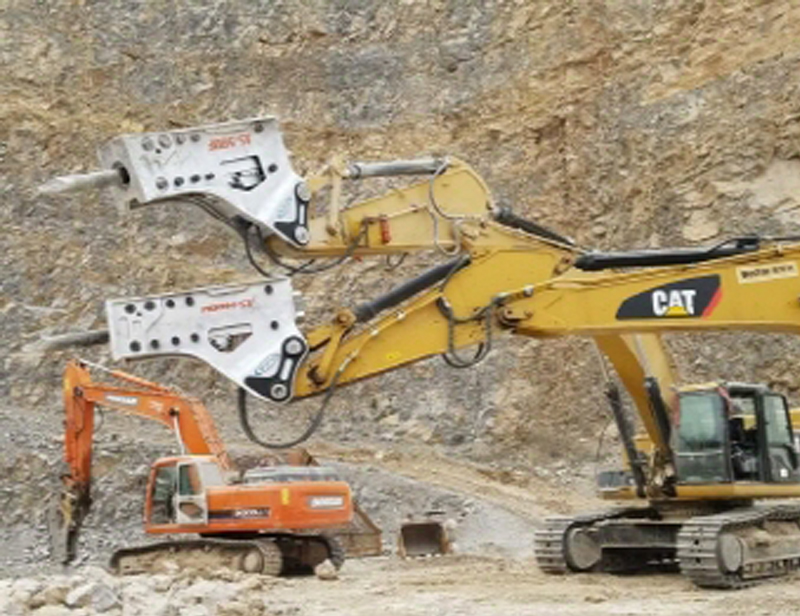

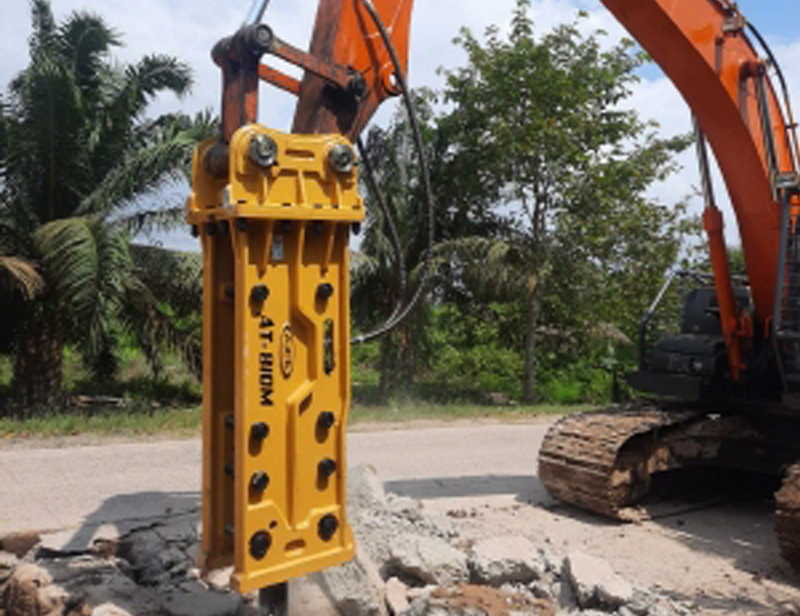

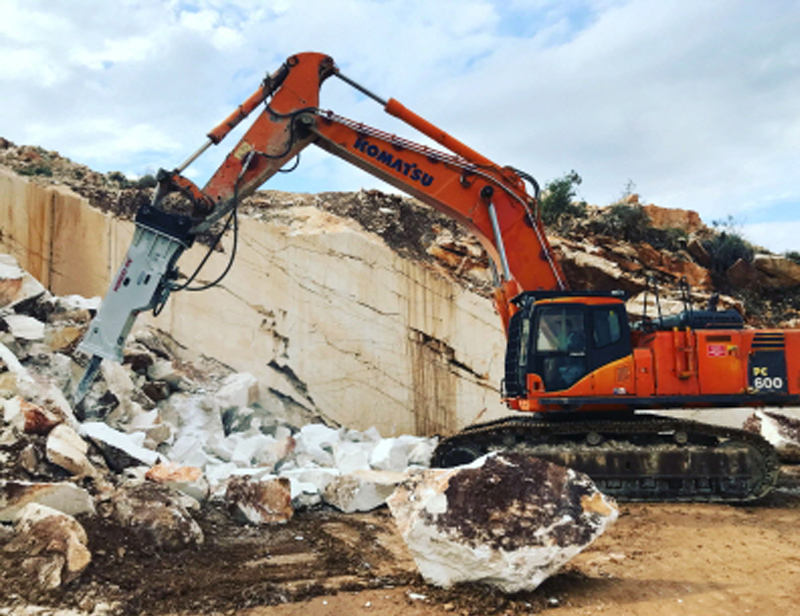

AJCE HAMMERS ARE WORKING HARD
ALL OVER THE WORLD!

BAUMA GERMANY - CONEXPO LAS VEGAS - INTERMAT FRANCE - BAUMA CHINA - CONEX KOREA - AJCE KOREA - AJCE EUROPE - AJCE BRASIL

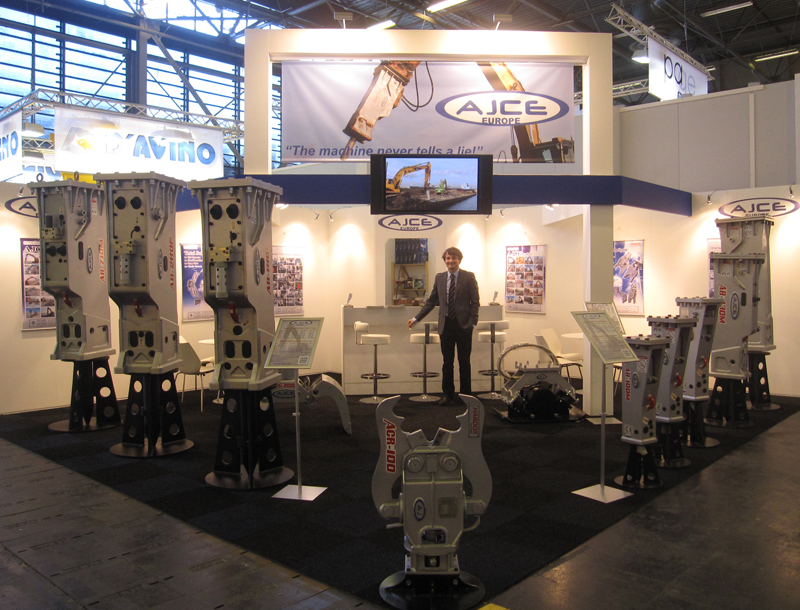

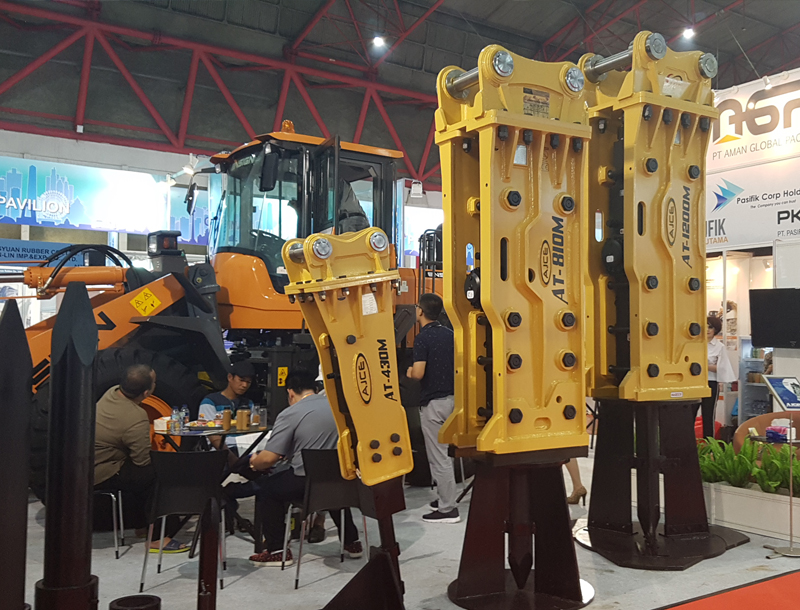

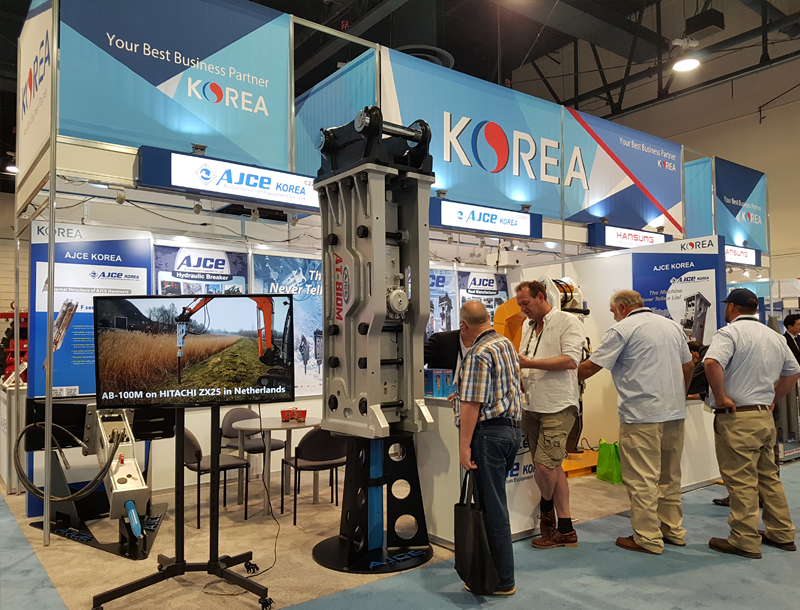

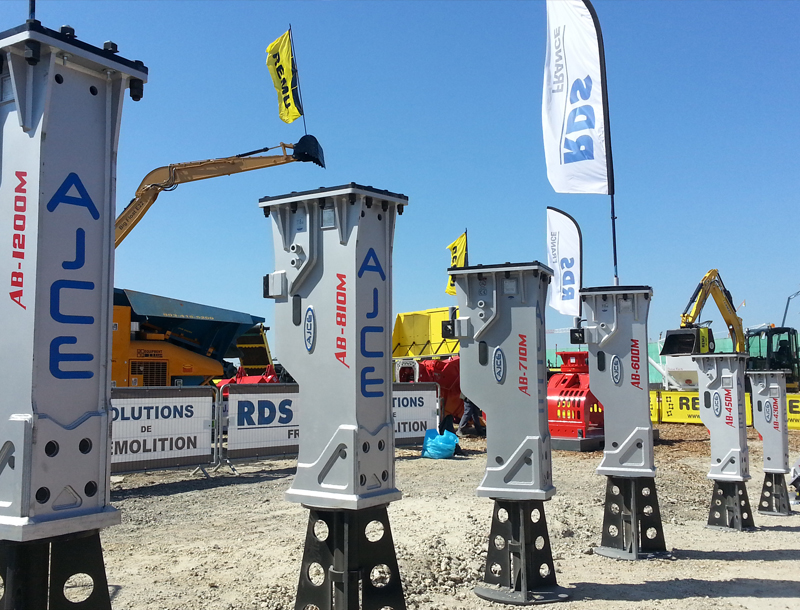

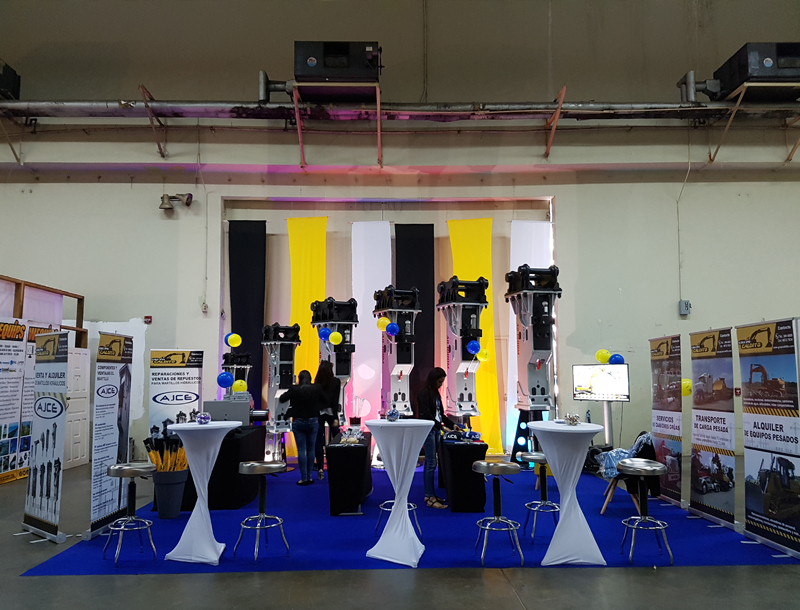

EXHIBITIONS

AJCE HAS PARTICIPATED IN ALL MAJOR EXHIBITIONS SUCH AS
BAUMA GERMANY, CONEXPO LAS VEGAS, INTERMAT FRANCE,
BAUMA CHINA, M&T EXPO BRASIL AND MINING INDONESIA ETC.

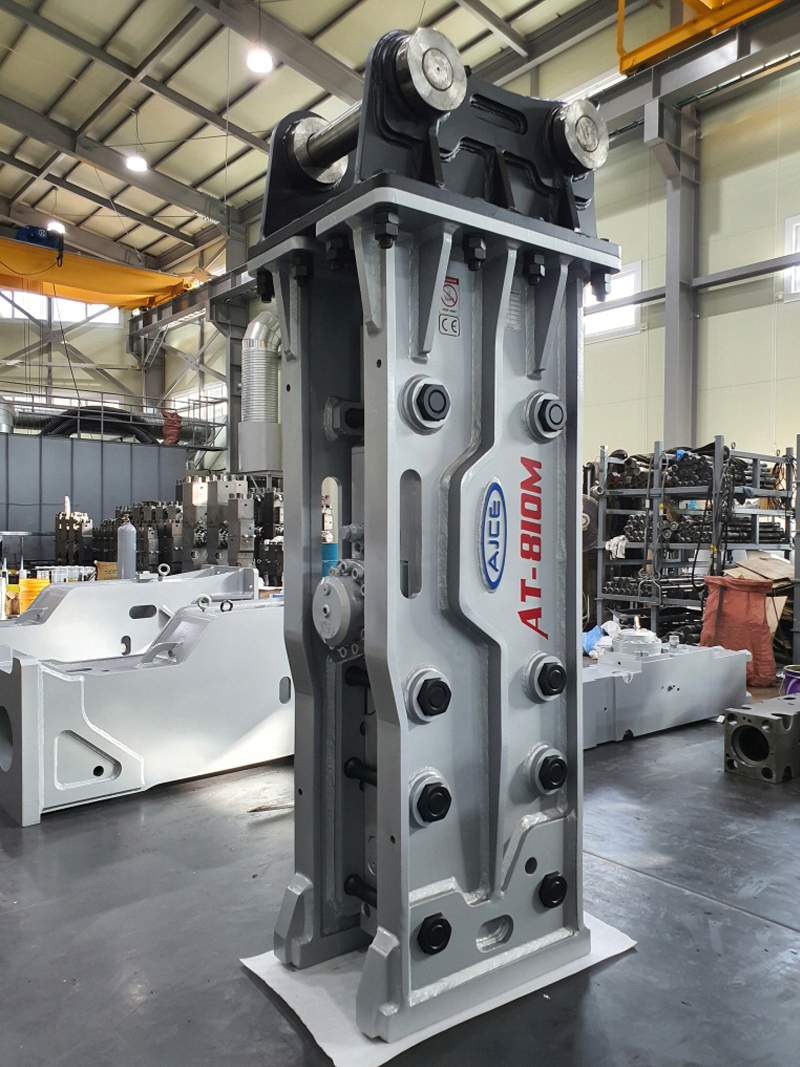

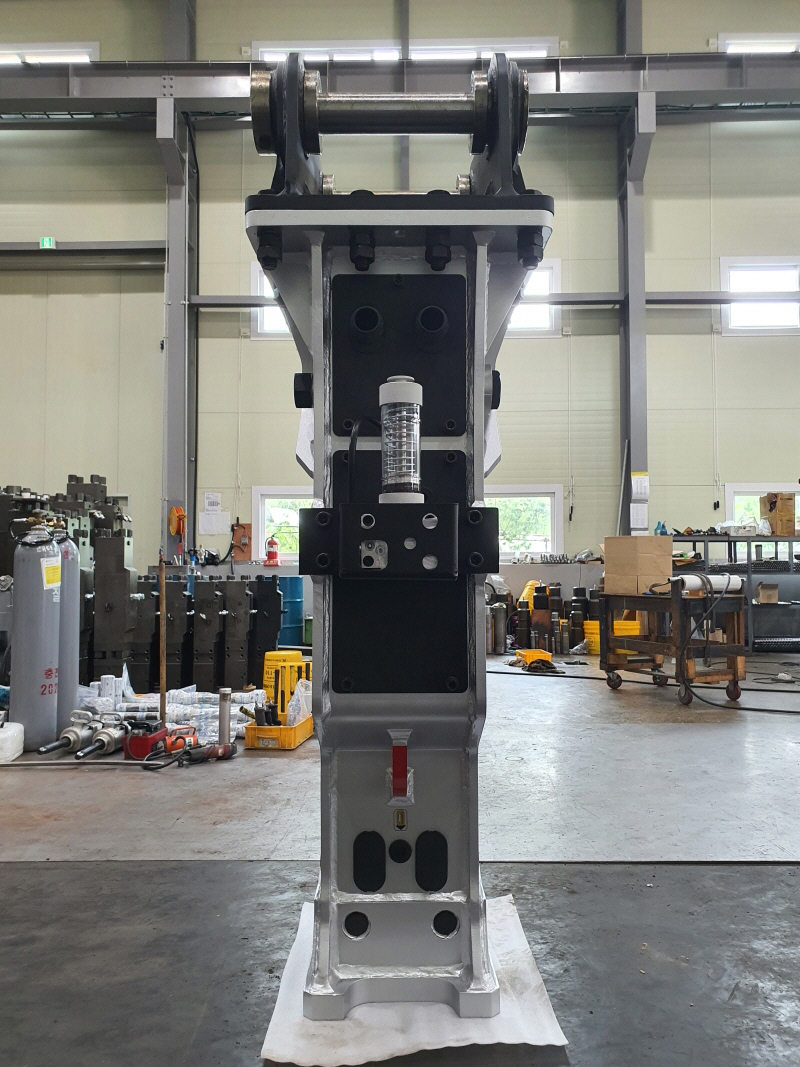

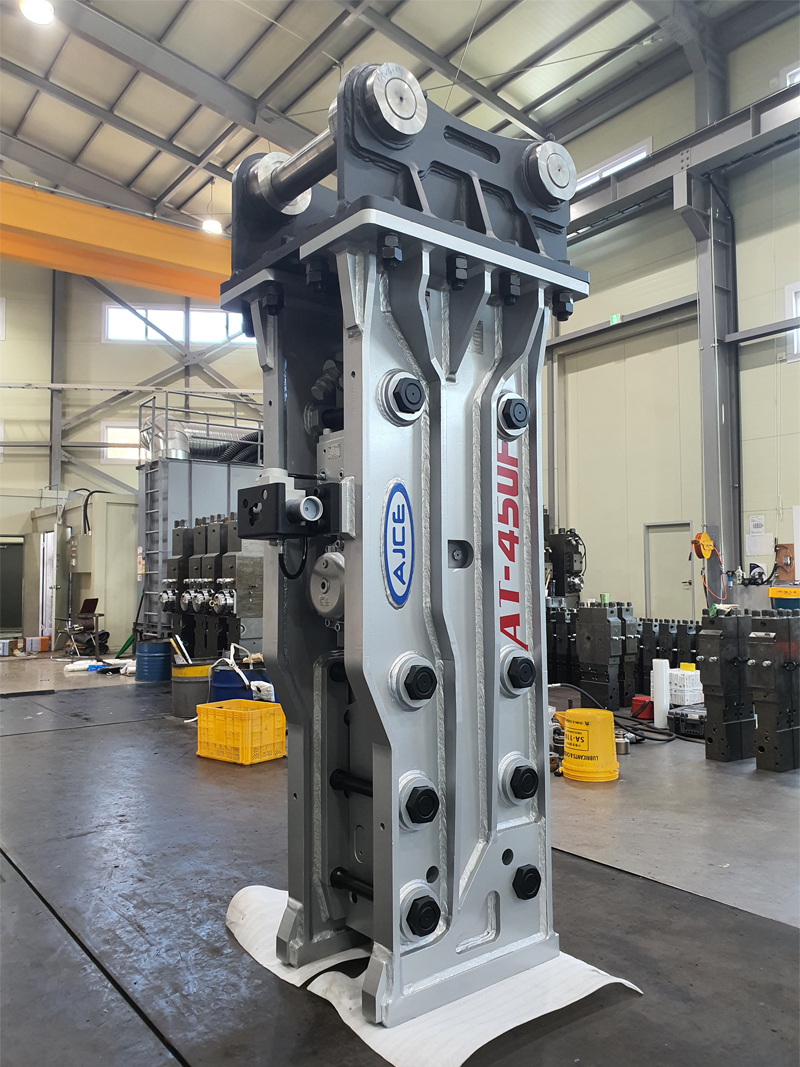

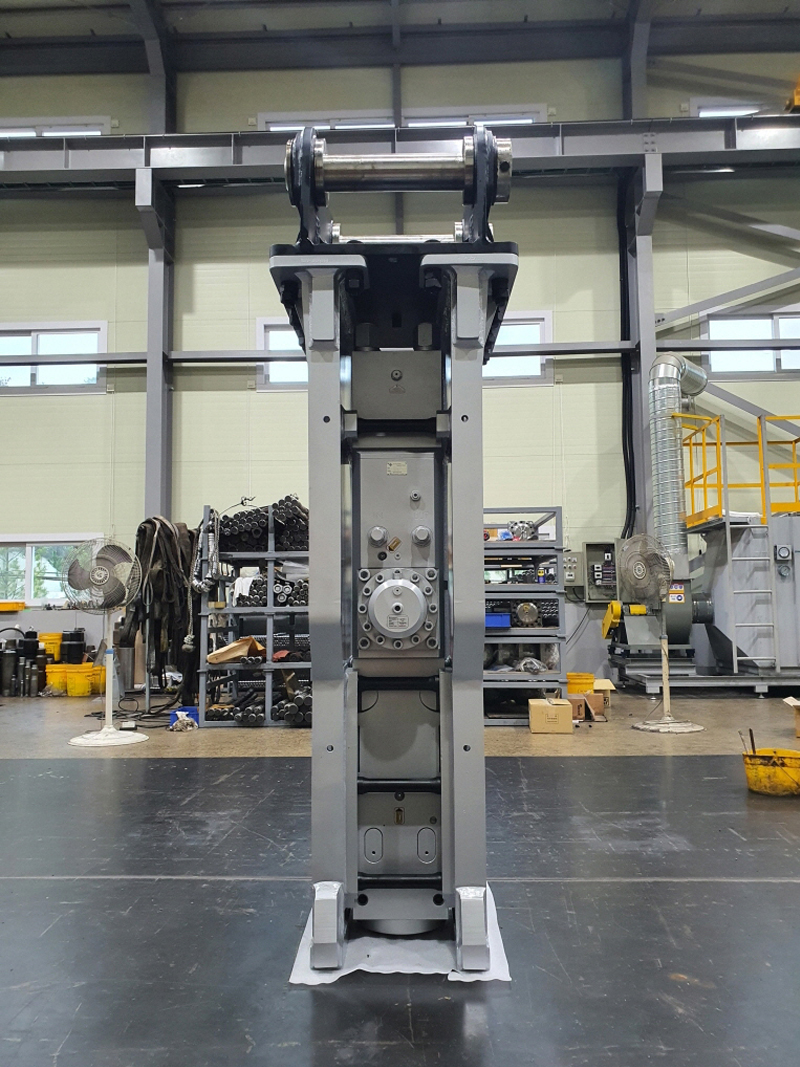

HYDRAULIC BREAKER

HYDRAULIC BREAKER - JACK HAMMER - ROCK BREAKER - EXCAVATOR ATTACHMENT - CONSTRUCTION EQUIPMENT - HYDRAULIC HAMMER

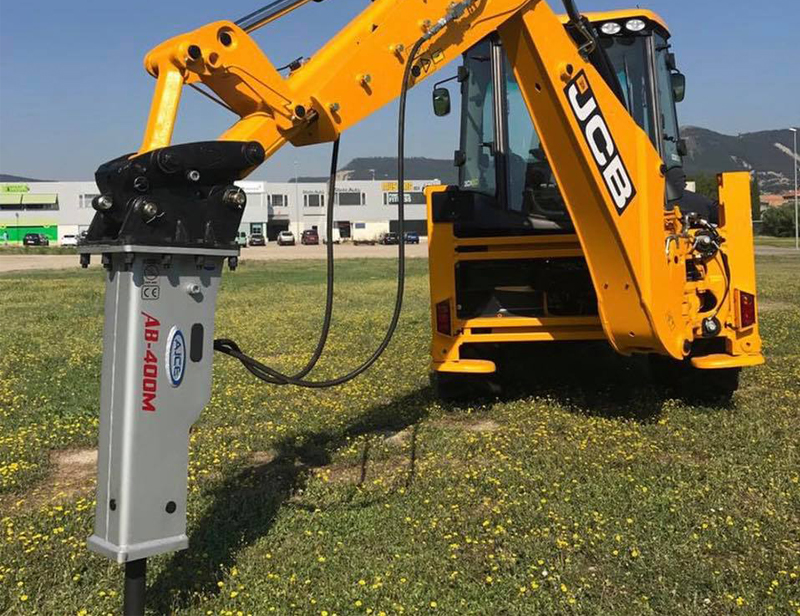

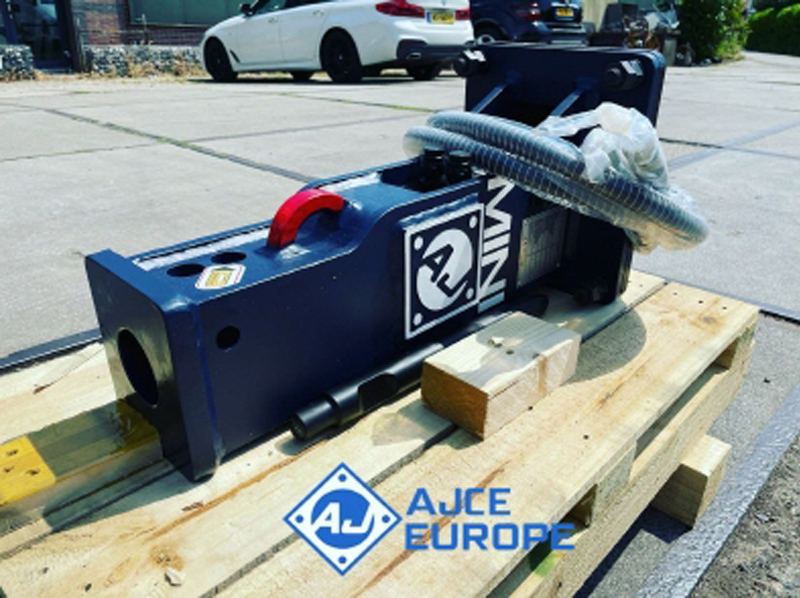

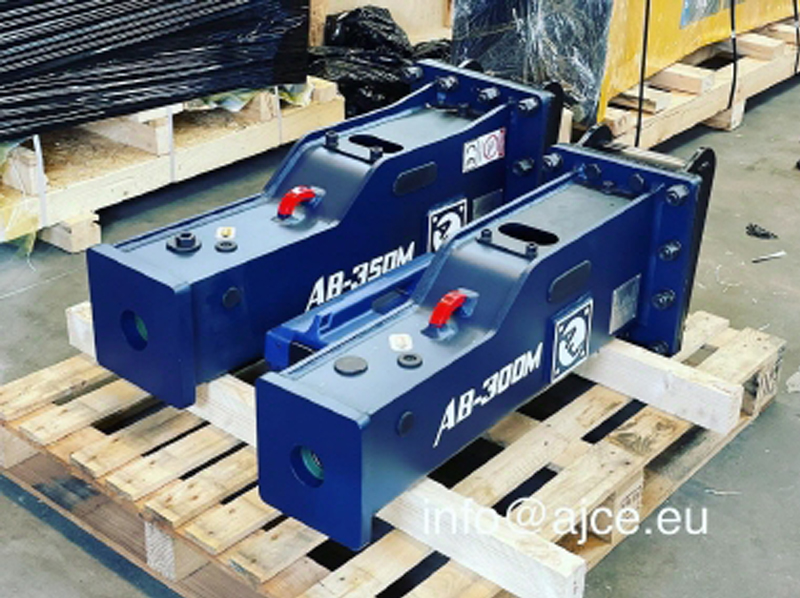

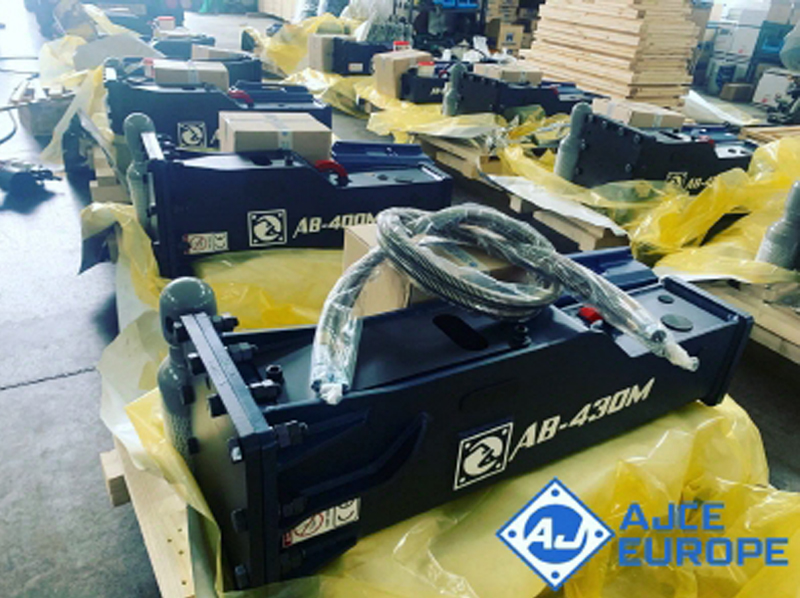

DESCRIPTION MODEL MINI 100M 200M 300M 350M 400M 430M 450M
SUITABLE EXCAVATOR TON 0.8~1.7 0.8~2.5 1.2~3.0 2.5~4.5 3~6 4~8 5~10 6~14
LB 1764~3748 1764~5512 2646~6614 7716~9921 6722~12125 8962~15432 13228~19841 15432~30864
OPERATING
WEIGHT		 BOX
TYPE		 TON   100 125 150 225 300 400 540
LB 165 220 276 331 496 661 882 1190
TOP
TYPE		 TON 70 90 110 135 210 300 400 540
LB 154 198 243 298 463 661 882 1190
REQUIRED OIL FLOW L/MIN 15~30 15~30 20~40 25~50 30~60 40~70 50~90 60~100
GAL/MIN 4.0~8.0 4.0~8.0 5.3~10.6 6.6~13.2 7.9~16.0 10.6~18.5 13.2~23.8 15.9~26.4
SETTING PRESSURE BAR 150 150 150 150 150 170 180 190
PSI 2134 2134 2134 2134 2134 2418 2560 2702
OPERATING PRESSURE BAR 90~120 90~120 90~120 90~120 100~130 110~140 120~150 130~160
PSI 1280~1707 1280~1707 1280~1707 1280~1707 1422~1849 1565~1991 1707~2134 1849~2276
IMPACT ENERGY JOULE 244 305 407 611 814 1018 1356 2036
FT.LBS 180 225 300 450 600 750 1000 1500
IMPACT RATE BPM 800~1400 800~1400 700~1200 600~1100 500~1000 500~900 400~800 400~800
HOSE DIAMETER INCH 1/2 1/2 1/2 1/2, 3/4 1/2, 3/4 1/2, 3/4 1/2, 3/4 3/4
NOISE LEVEL dB 106 106 107 109 117 109 115 112
CHISEL DIAMETER MM 35 40 45 53 60 68 75 85
INCH 1.4 1.6 1.8 2.1 2.4 2.7 3.0 3.4

AJCE - FURUKAWA - ATLASCOPCO - MONTABERT - NPK - RAMMER - CAT - HYUNDAI - DOOSAN - VOLVO - JCB - KOMATSU - HITACHI - JOHN DEERE

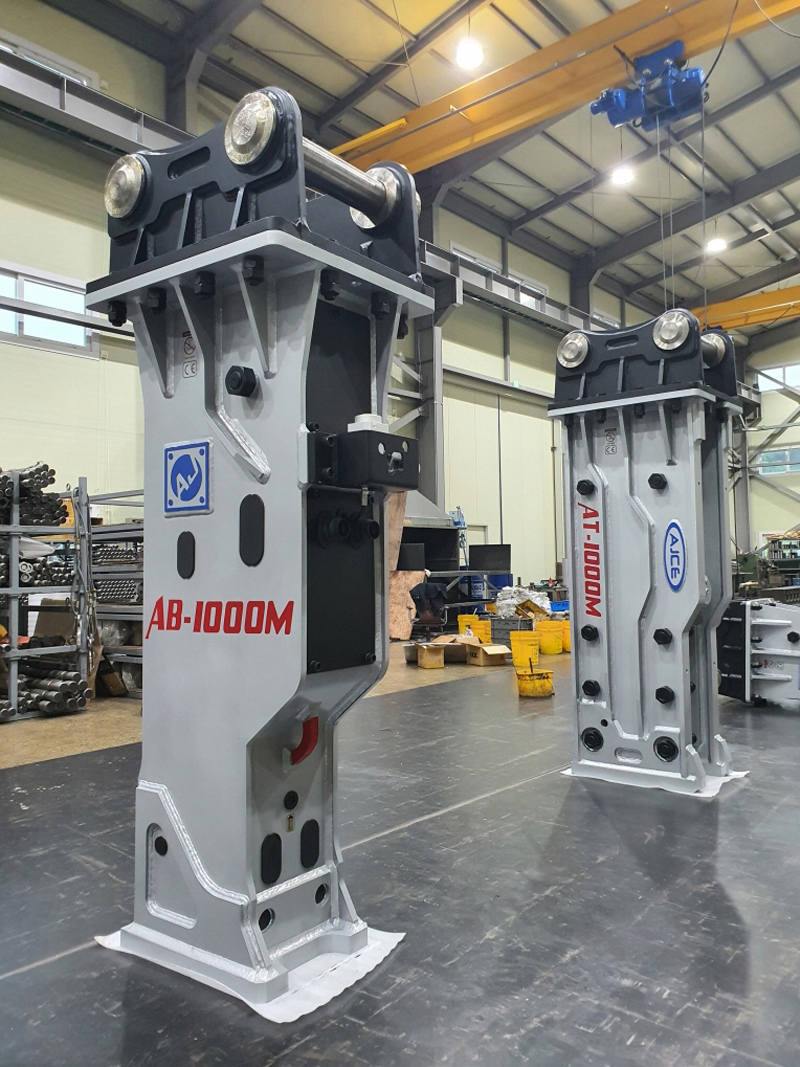

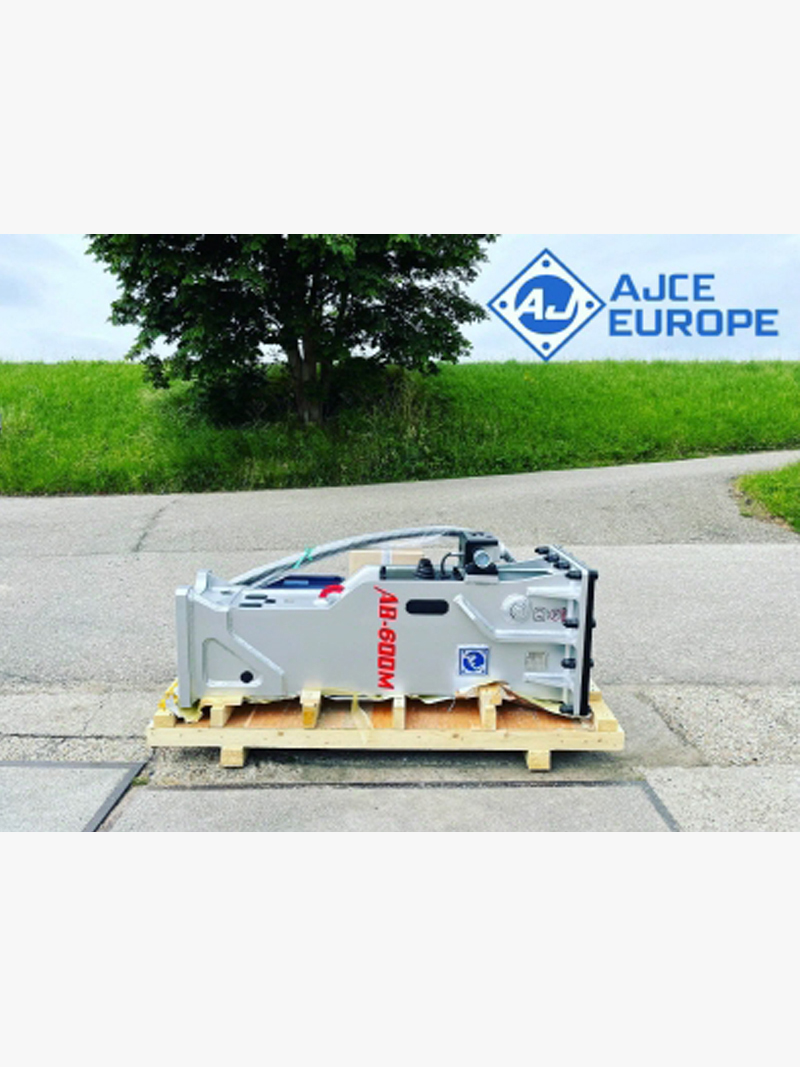

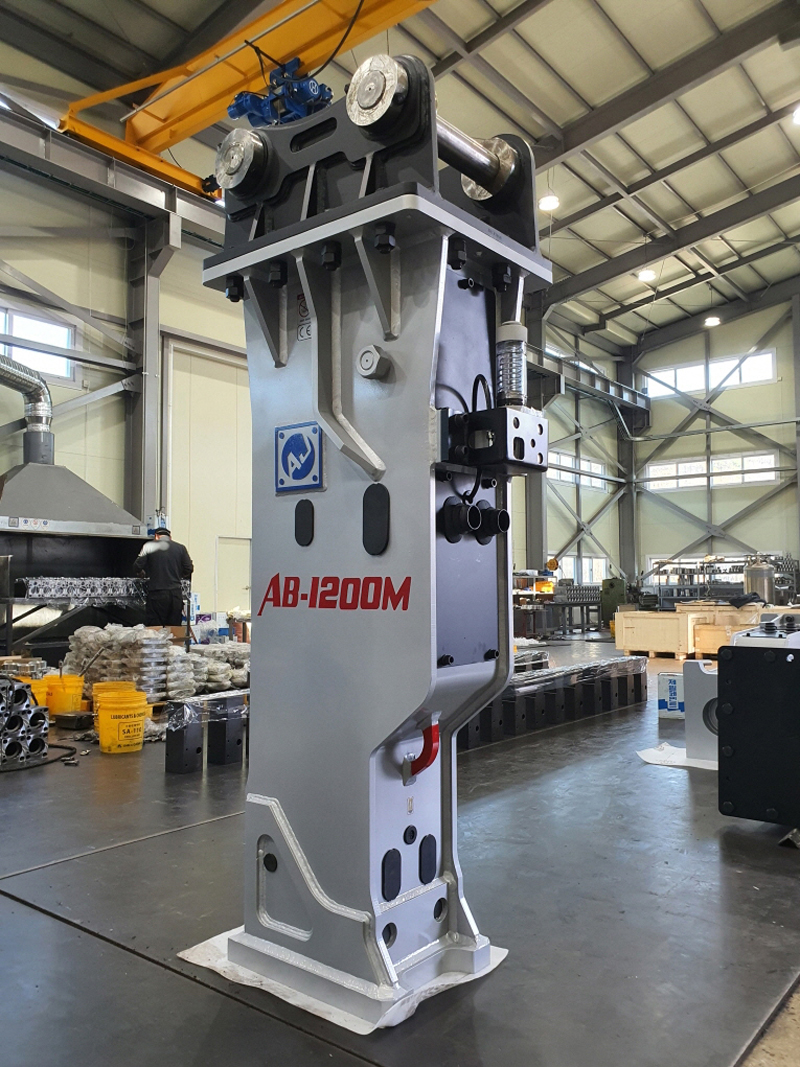

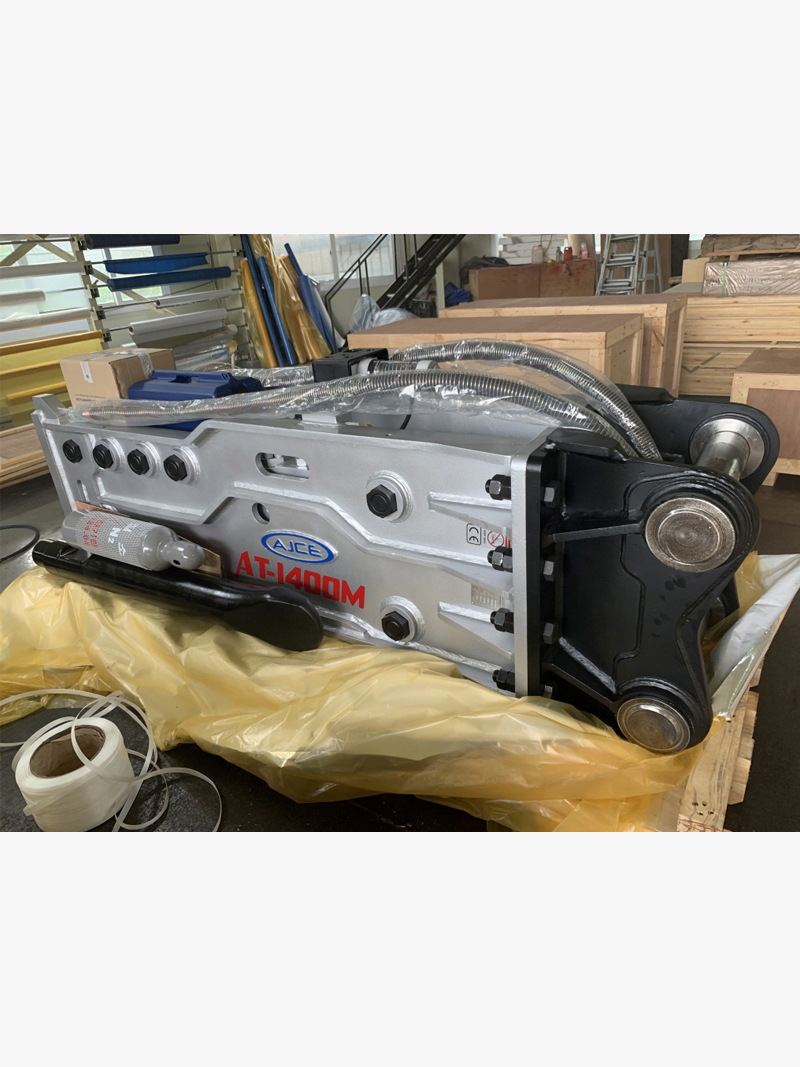

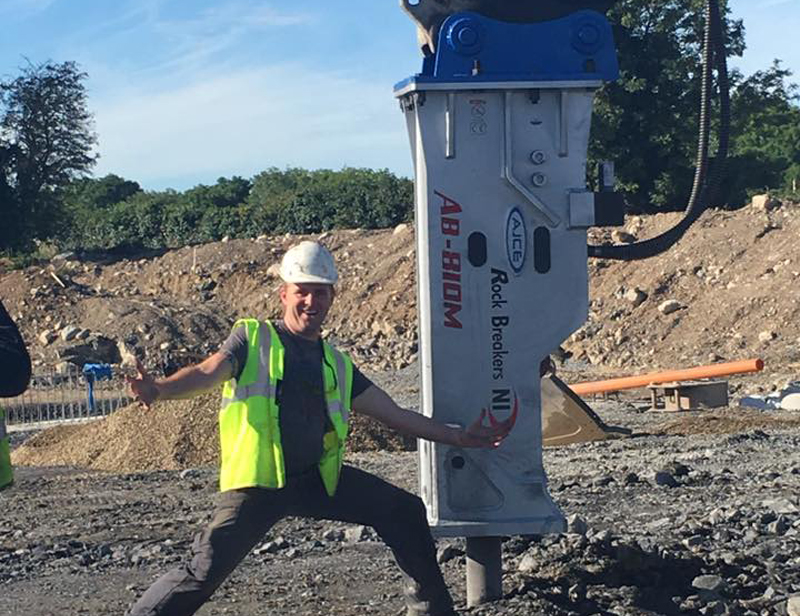

DESCRIPTION MODEL 500M 600M 710M 810M 1000M 1200M 1400M 1500M
SUITABLE EXCAVATOR TON 10~18 14~20 17~23 18~26 25~33 28~36 35~45 45~55
LB 24251~35274 33069~39683 37479~50706 39683~57320 55115~68343 63934~77162 77162~99207 99207~121253
OPERATING
WEIGHT		 BOX
TYPE		 TON 860 1450 1700 1950 2400 2800 3400 4300
LB 1896 3197 3748 4299 5291 6173 7496 9480
TOP
TYPE		 TON 890 1450 1700 1950 2400 2800 3400 4300
LB 1962 3197 3748 4299 5291 6173 7496 9480
REQUIRED OIL FLOW L/MIN 80~110 90~120 100~150 120~180 150~210 180~240 200~2600 210~290
GAL/MIN 21.1~29.1 23.8~31.7 26.4~39.6 31.7~47.6 39.6~55.5 47.6~63.4 50.8~68.7 55.5~76.6
SETTING PRESSURE BAR 200 210 210 210 210 210 210 210
PSI 2845 2987 2987 2987 2987 2987 2987 2987
OPERATING PRESSURE BAR 150~170 150~170 160~180 160~180 160~180 160~180 160~180 160~180
PSI 2134~2418 2134~2418 2276~2560 2276~2560 2276~2560 2276~2560 2276~2560 2276~2560
IMPACT ENERGY JOULE 2712 4067 5423 6107 8143 10178 13558 16270
FT.LBS 2000 3000 4000 4500 6000 7500 10000 12000
IMPACT RATE BPM 350~700 350~650 350~600 350~500 300~450 300~450 250~350 200~300
HOSE DIAMETER INCH 3/4 1 1 1 1 1-1/4 1-1/4 1-1/4
NOISE LEVEL dB 114 115 120 118 120 123 124 125
CHISEL DIAMETER MM 100 125 135 140 150 155 165 175
INCH 4.0 4.9 5.3 5.5 5.9 6.1 6.5 6.9

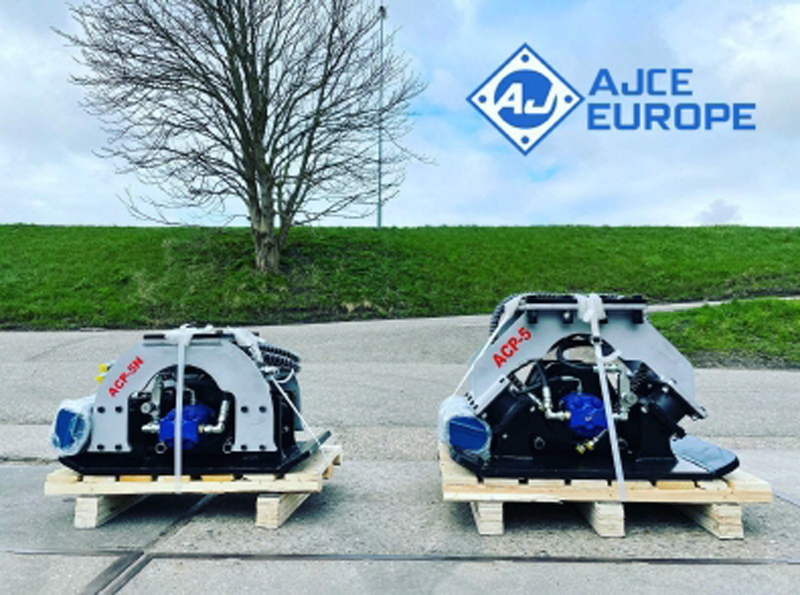

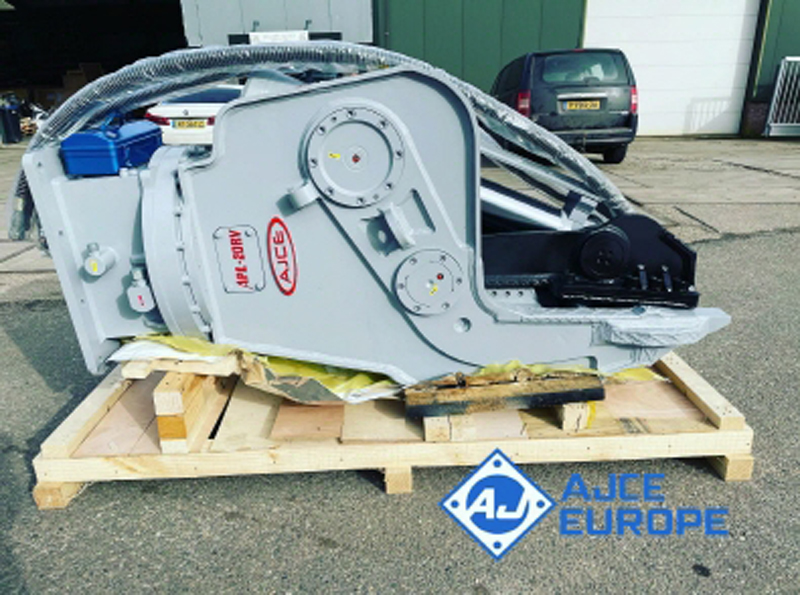

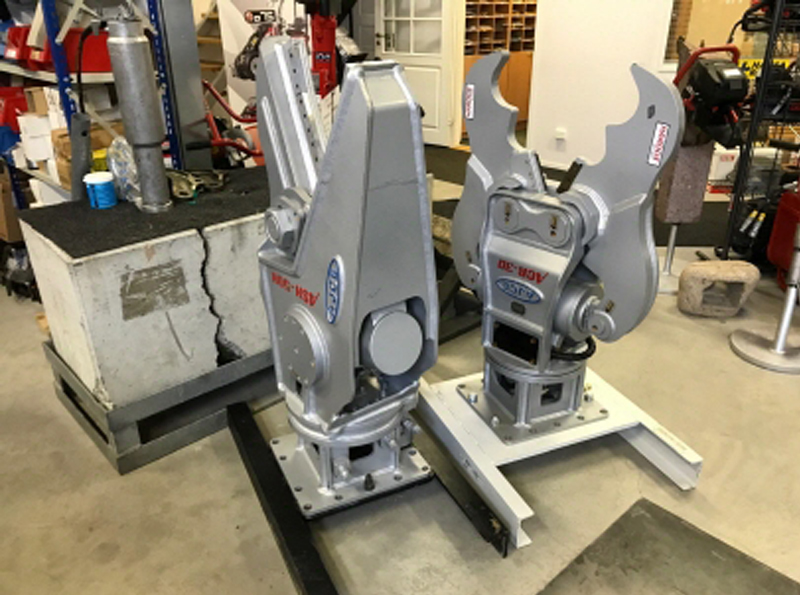

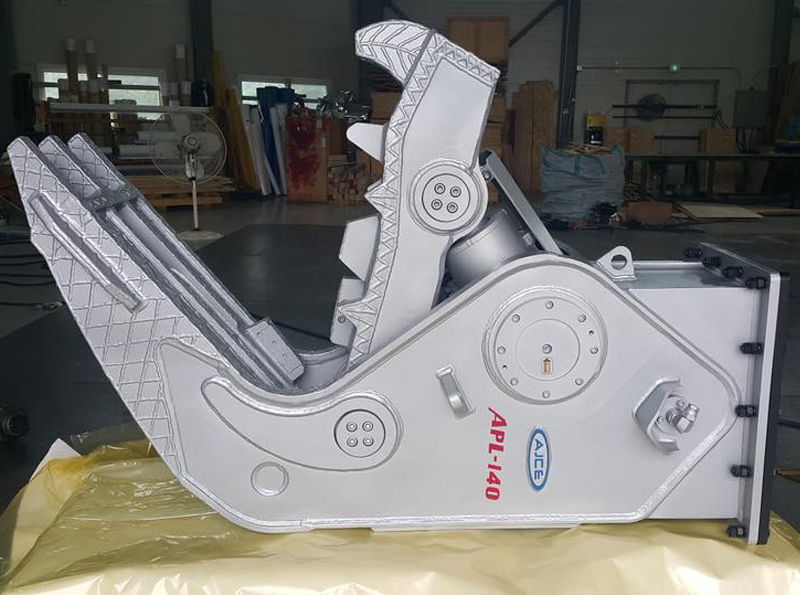

SHEAR - CRUSHER - PULVERIZER - COMPACTOR - PILE DRIVER - RIPPER - QUICK COUPLER - GRAPPLE - EXCAVATOR PARTS

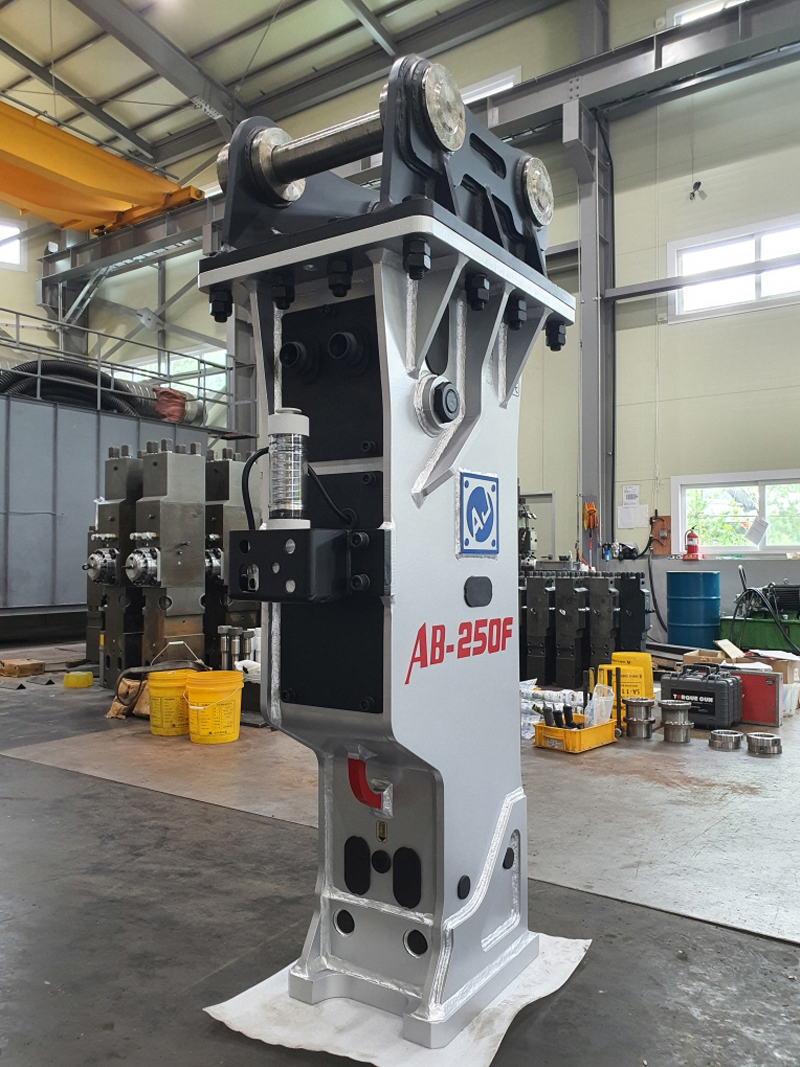

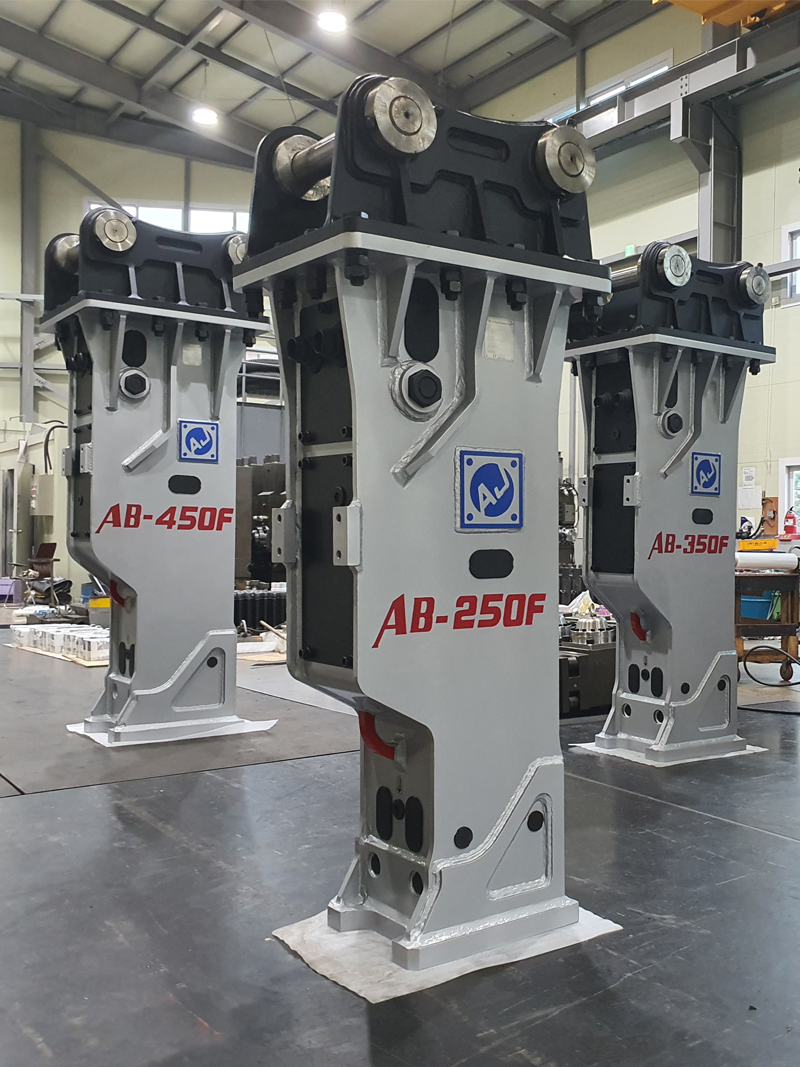

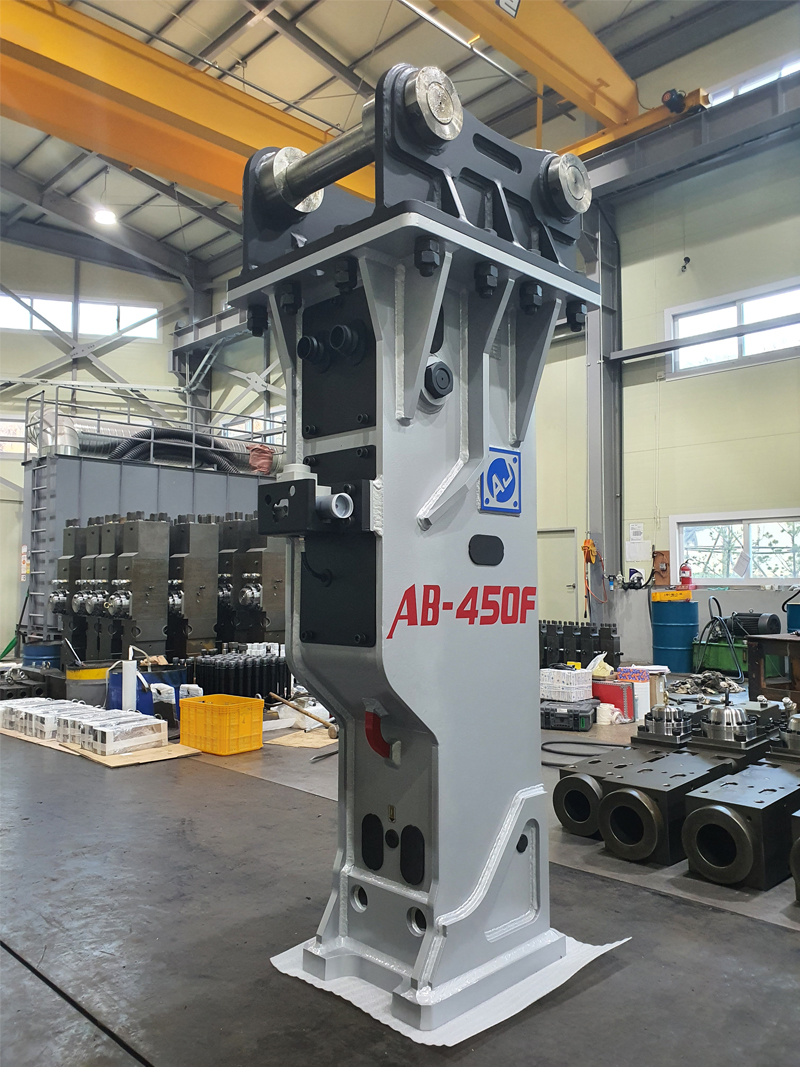

DESCRIPTION MODEL 180F 250F 350F 450F 550F 650F
SUITABLE EXCAVATOR TON 14~18 18~25 25~35 35~45 45~60 50~65
LB 30865~39683 39283~55115 55115~77162 72162~99207 99207~132277 110230~143300
OPERATING
WEIGHT		 BOX
TYPE		 TON 1400 1800 2500 3400 4400 4800
LB 3086 3968 5512 7496 9700 10582
TOP
TYPE		 TON 1400 1800 2500 3400 4400 4800
LB 3086 3968 5512 7496 9700 10582
REQUIRED OIL FLOW L/MIN 115~150 125~160 175~220 200~250 220~300 220~300
GAL/MIN 30.4~39.6 33.0~42.3 46.2~58.1 52.8~66.1 58.1~79.9 58.1~79.9
SETTING PRESSURE BAR 210 210 210 210 220 230
PSI 2987 2987 2987 2987 3129 3271
OPERATING PRESSURE BAR 160~180 160~180 160~180 160~180 170~190 180~200
PSI 2276~2560 2276~2560 2276~2560 2276~2560 2418~2702 2560~2845
IMPACT ENERGY JOULE 4067 5423 8143 13558 16270 20337
FT.LBS 3000 4000 6000 10000 12000 15000
IMPACT RATE BPM 350~650 350~600 300~450 300~400 200~300 150~250
HOSE DIAMETER INCH 1 1 1 1-1/4 1-1/4 1-1/4
NOISE LEVEL dB 114 120 120 123 126 127
CHISEL DIAMETER MM 120 135 150 160 180 190
INCH 4.7 5.4 5.9 6.3 7.1 7.5

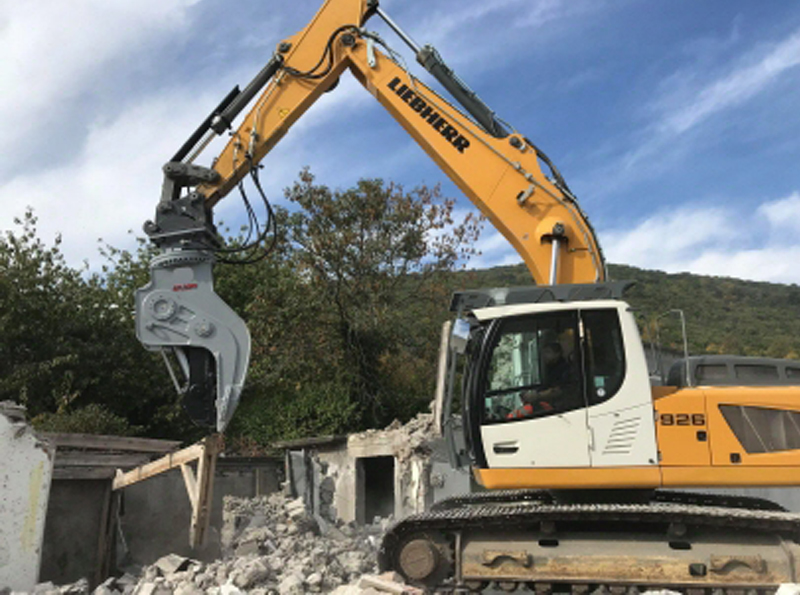

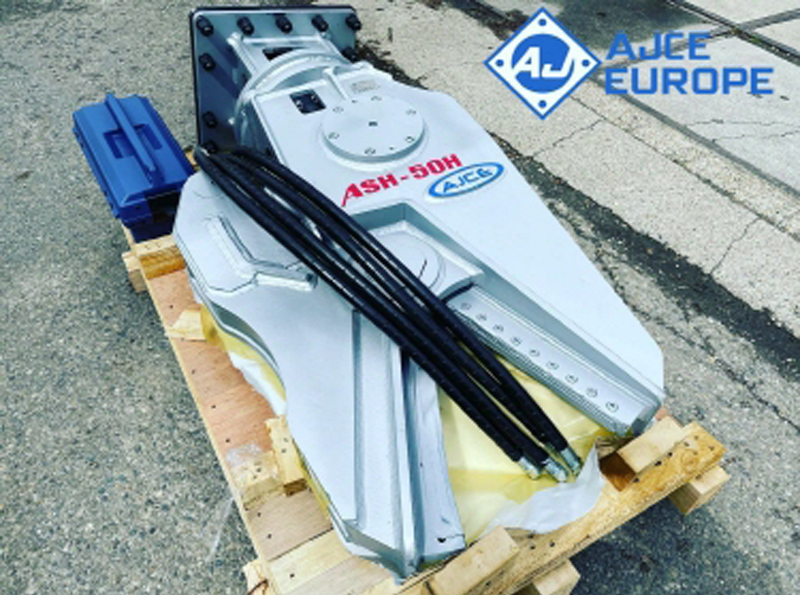

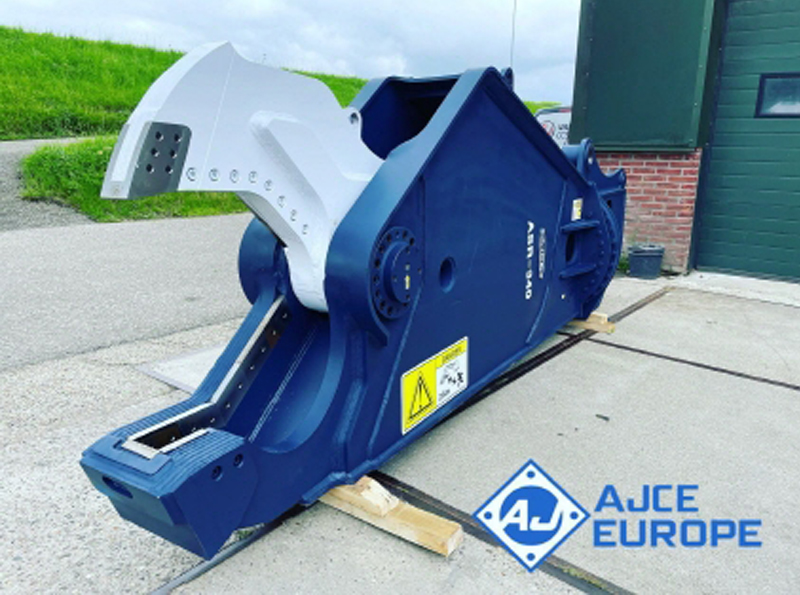

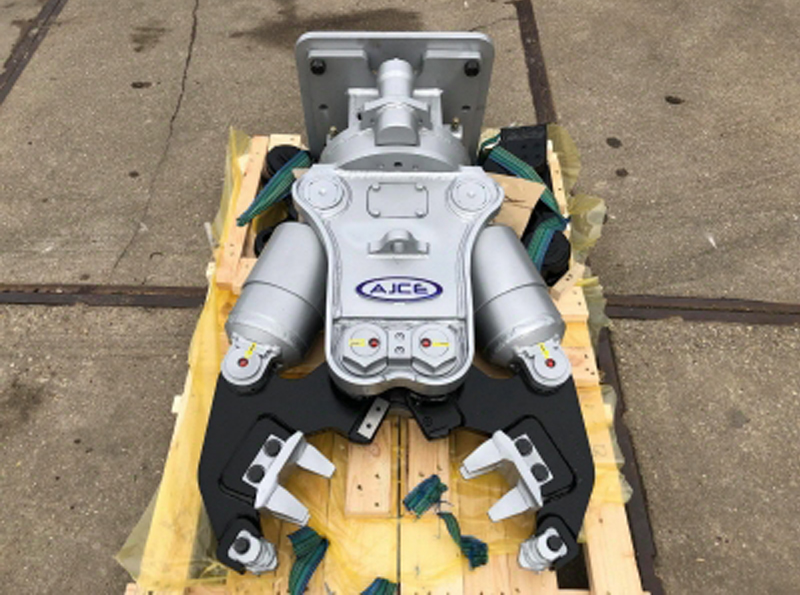

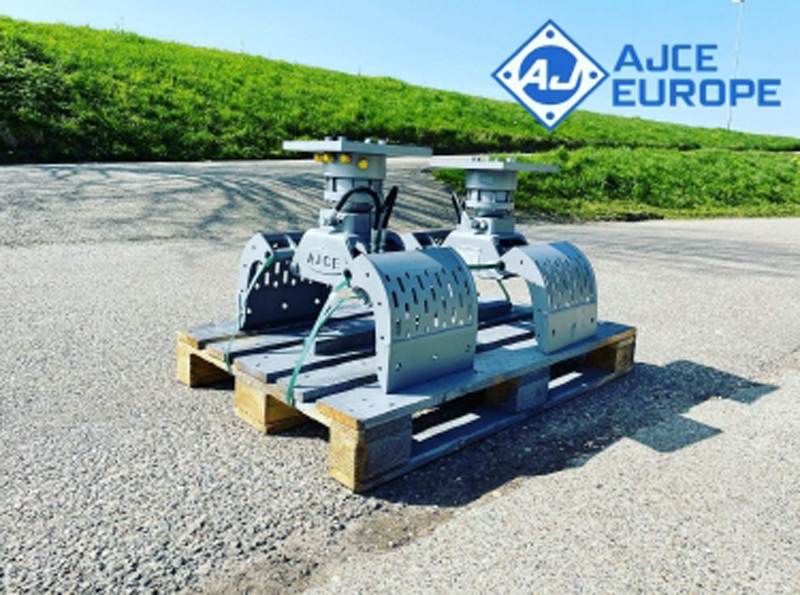

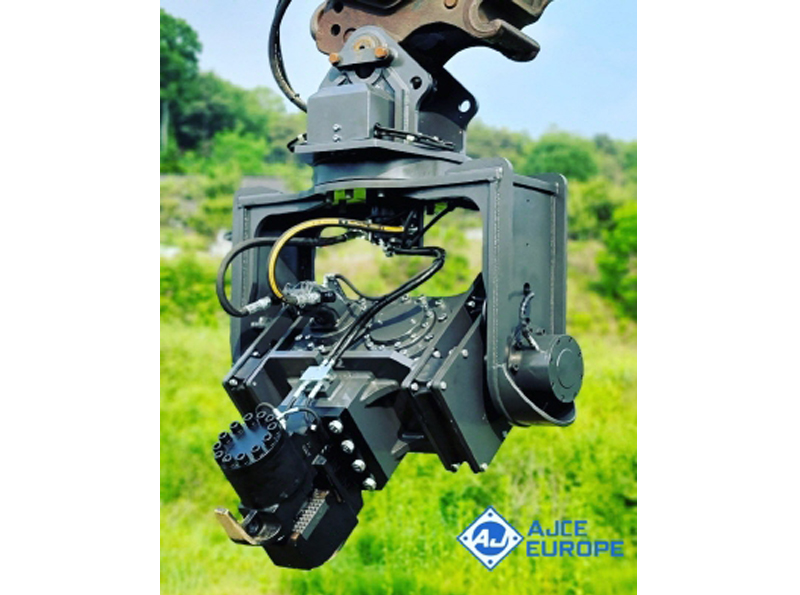

EXCAVATOR ATTACHMENTS
